delta anchor

• Material: galvanized steel
• Notes: Main anchor, located on the bow
• Weight: 45lbs

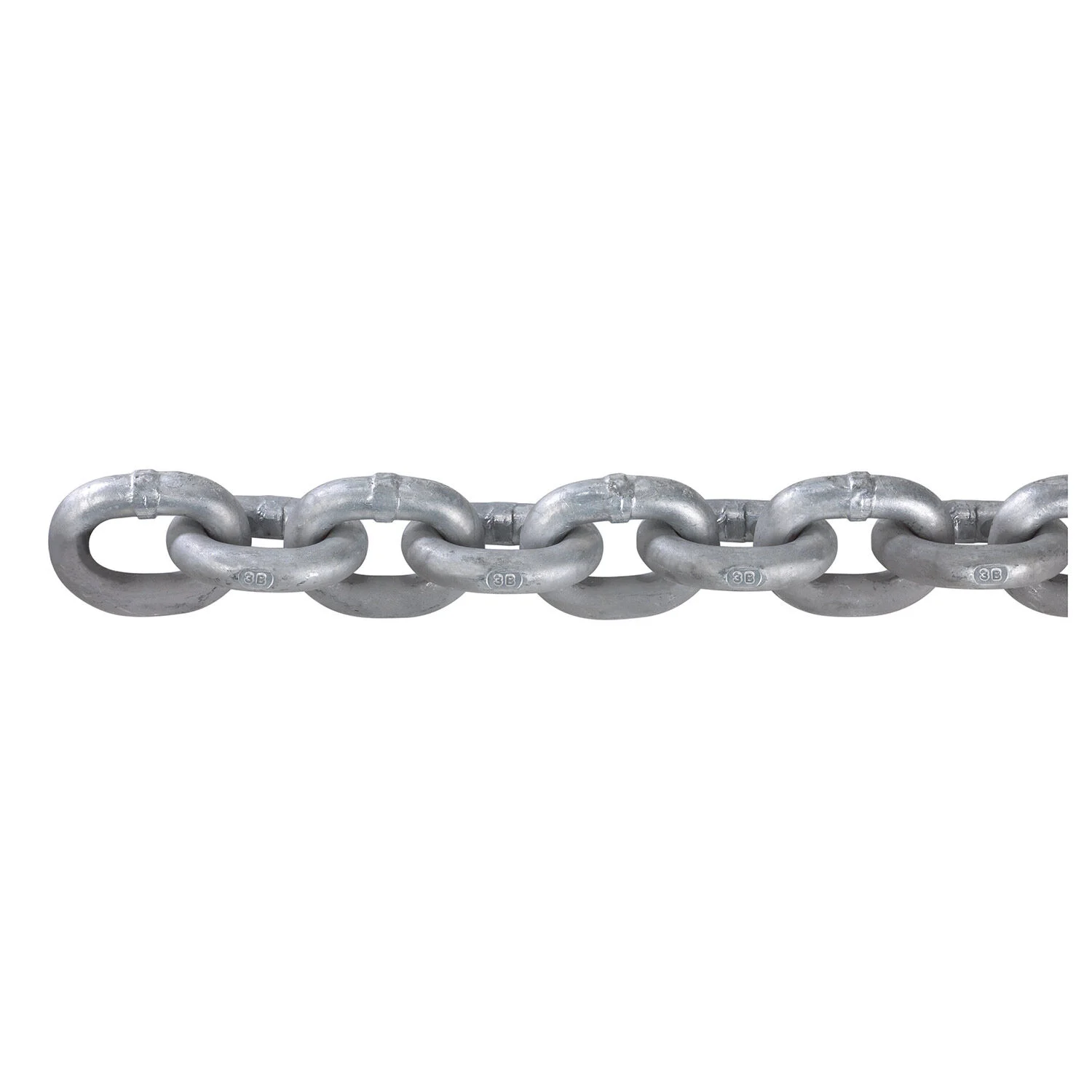

BBB chain

• Material: galvanized steel
• Size: 3/8"
• Length: 42'

vertical windlass

• Manufacturer: Simpson-Lawrence
• Model: Sprint 1500
• Notes: RC162 gypsy
• Voltage: 12VDC

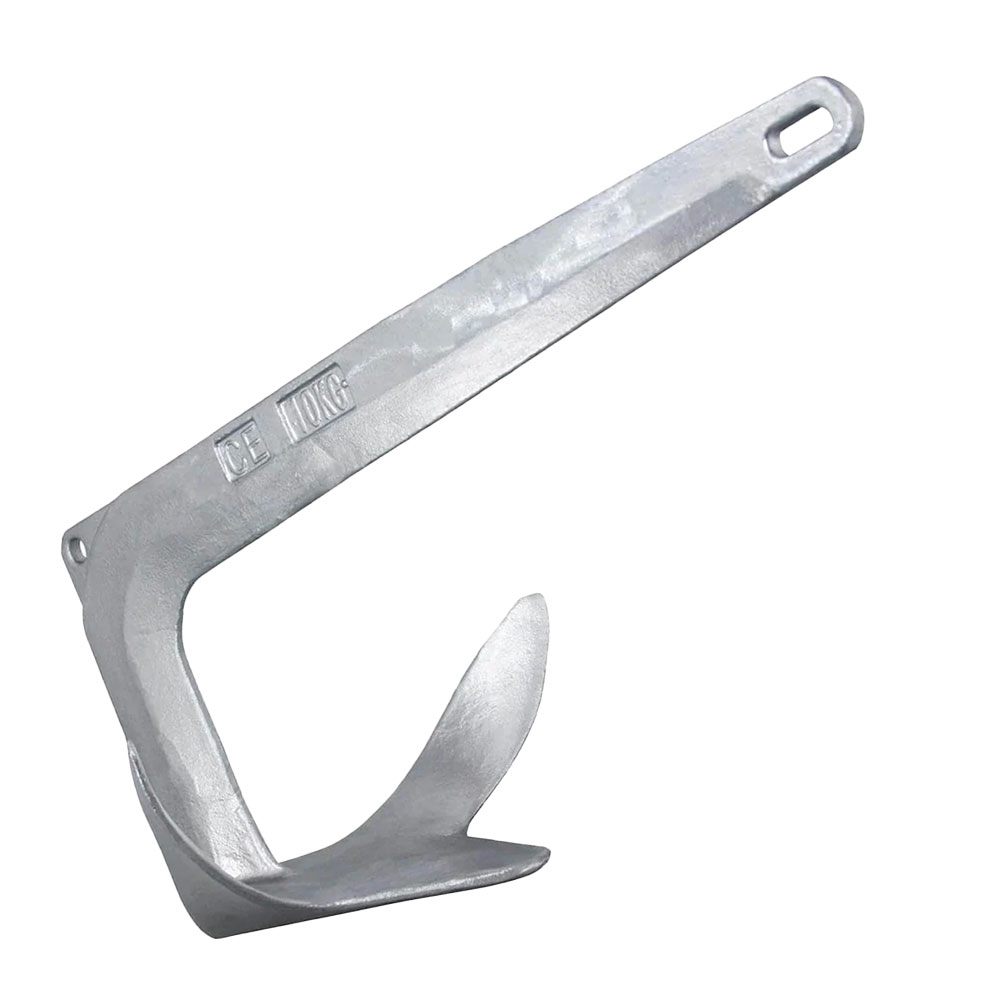

bruce anchor

• Material: galvanized steel
• Weight: 45lbs

rode

• Material: nylon
• Length: 300'

CQR anchor

• Material: steel
• Weight: 35lbs

anchor bridle

• Material: nylon, steel

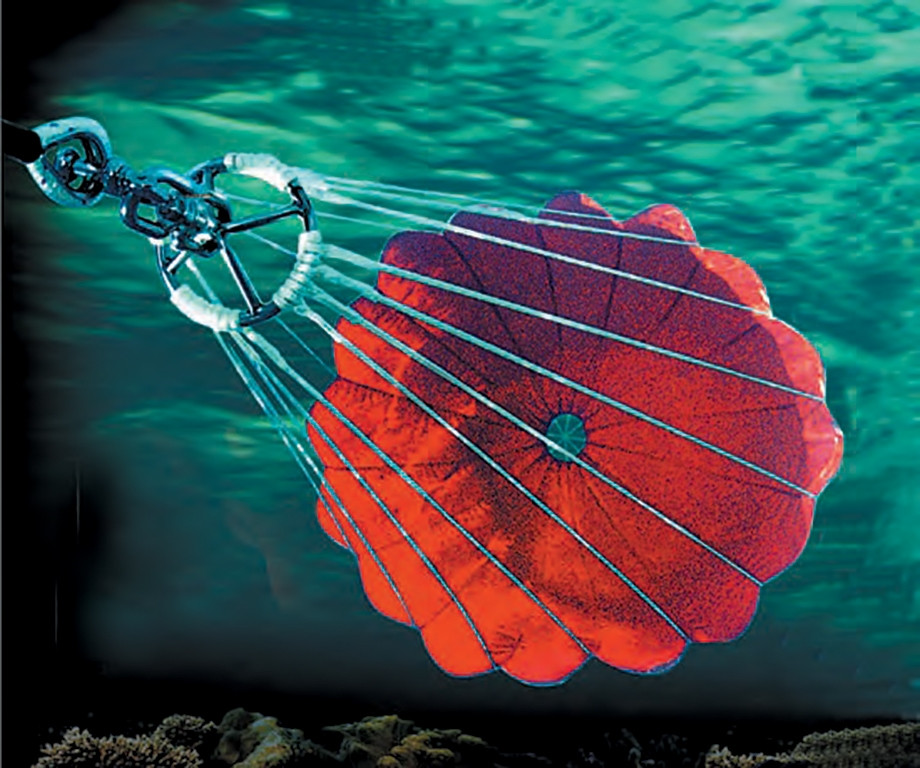

offshore para-anchor

• Diameter: 21'
• Manufacturer: Fiorentino
• Manufactured In: US

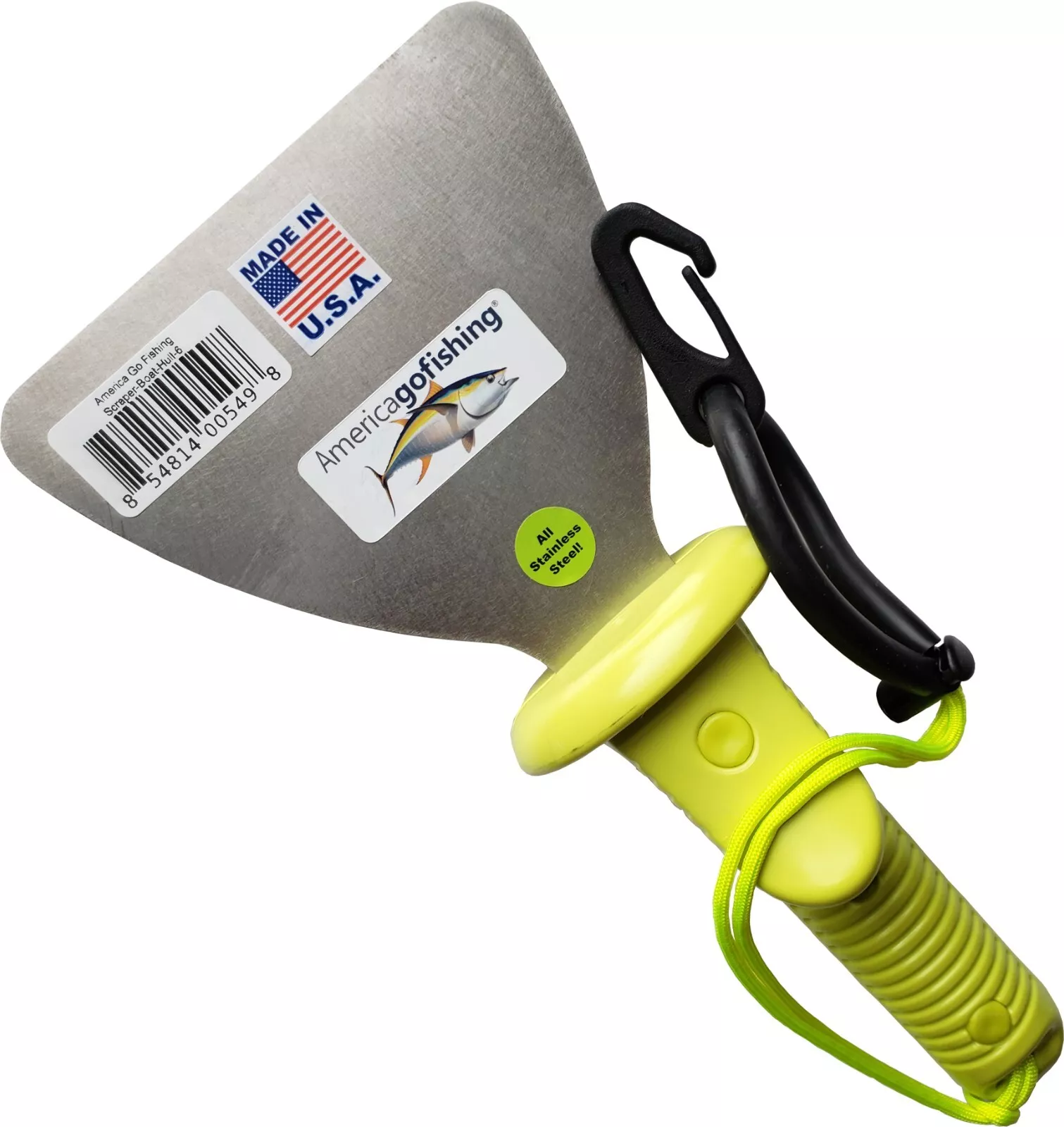

boat hull scraper

• Manufacturer: America Go Fishing
• Model: 6"
• Manufactured In: US

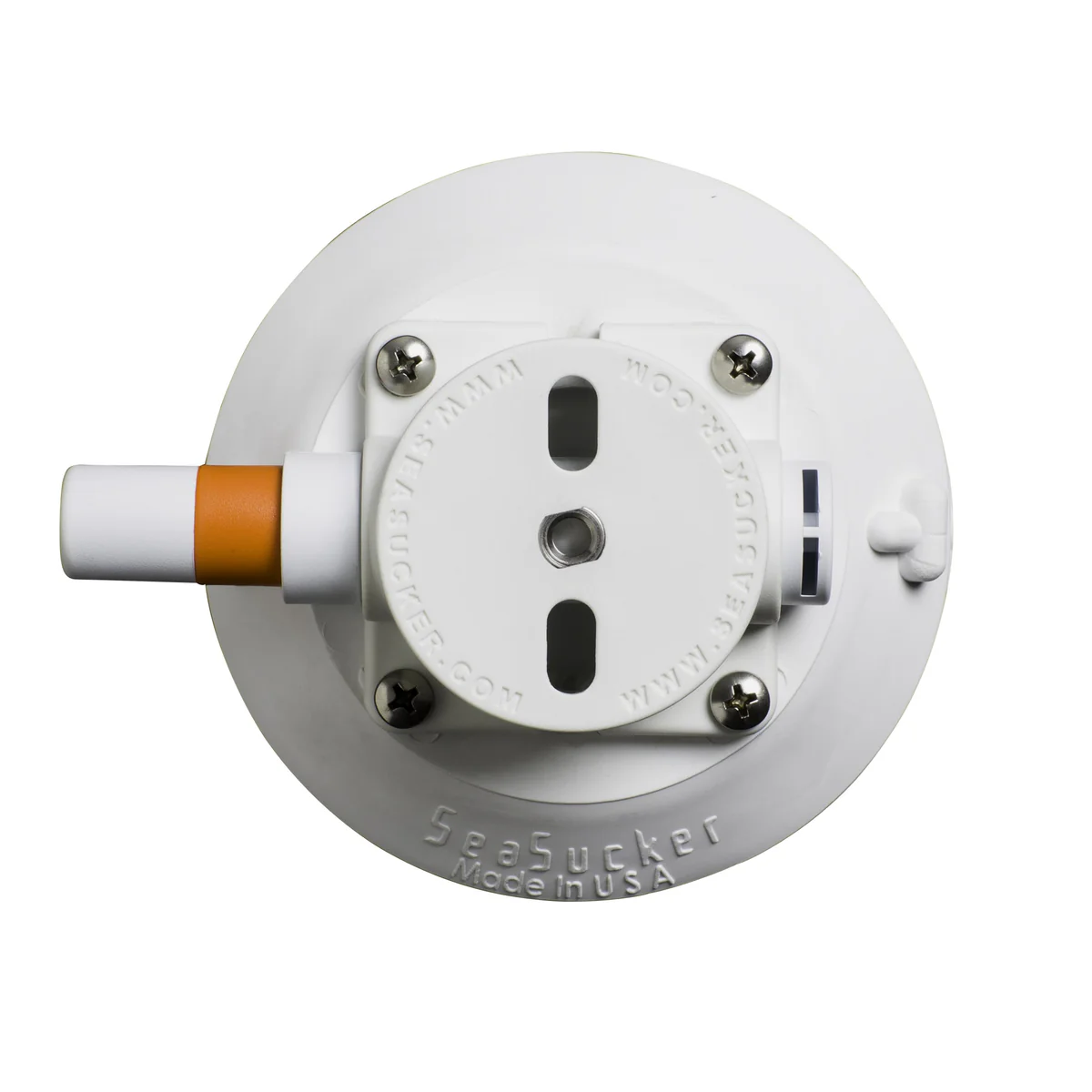

suction cup

• Manufacturer: SeaSucker
• Model: 4.5"
• Manufactured In: US

satellite internet dish & router kit

• Manufacturer: Starlink
• Model: RV
• Manufactured In: US
• Voltage: 230VAC

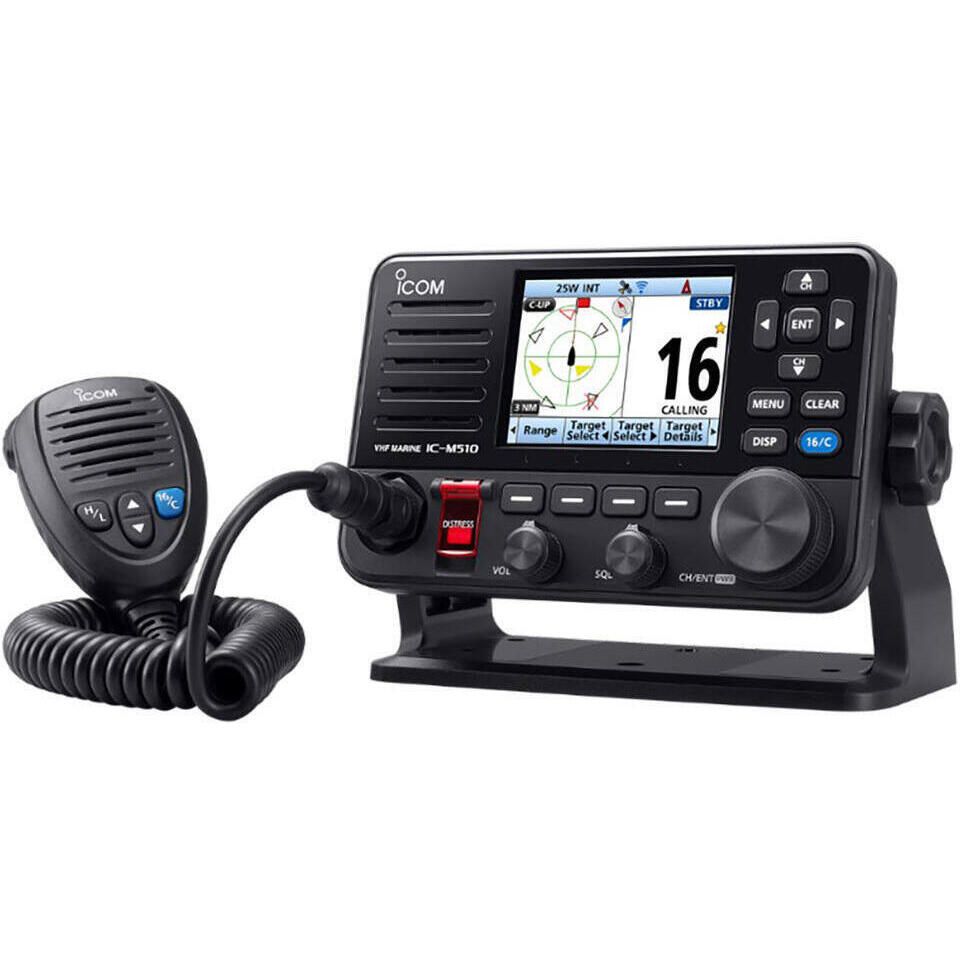

VHF radio

• Manufacturer: Icom
• Model: M510
• Manufactured In: JP

VHF antenna

• Location: top of the mast

vessel name and home port sticker

• Material: vinyl
• Location: stern

QR Code stickers

• Material: vinyl
• Count: 2
• Location: port & starboard

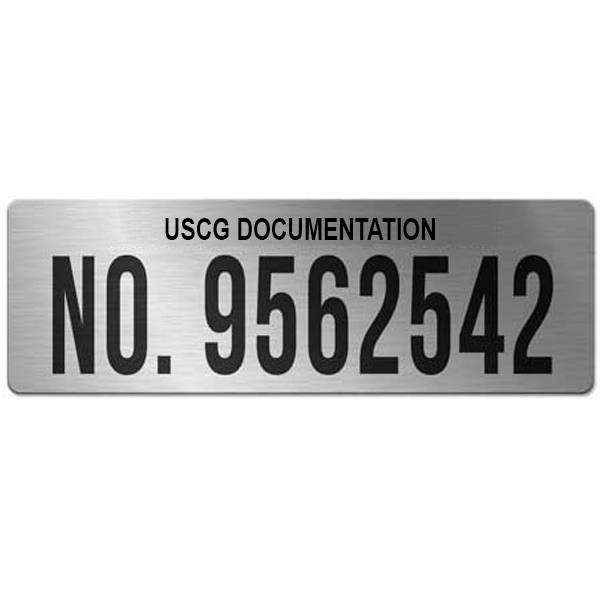

vessel number plate

• Manufacturer: Vessel Placards
• Material: stainless steel
• Location: cockpit (starboard side)

diving tank

• Manufacturer: MiniDive
• Model: Pro+
• Material: aluminum
• Capacity: 0.85L (up to 15 minutes)
• Max Pressure: 200 bar
• Manufactured In: FR

diving tank

• Manufacturer: MiniDive
• Model: Evo
• Material: aluminum
• Capacity: 0.2L (up to 3 minutes)
• Max Pressure: 200 bar
• Manufactured In: FR

electric compressor

• Manufacturer: MiniDive
• Model: MiniComp
• Voltage: 12VDC
• Max Pressure: 300bar

deck cleats

• Material: aluminum
• Size: 10"
• Count: 6
• Location: three along each hull

stern cleats

• Material: aluminum
• Size: 6"
• Count: 2
• Location: stern

bow chocks

• Material: aluminum
• Manufacturer: Simpson-Lawrence
• Count: 4
• Location: two per bow

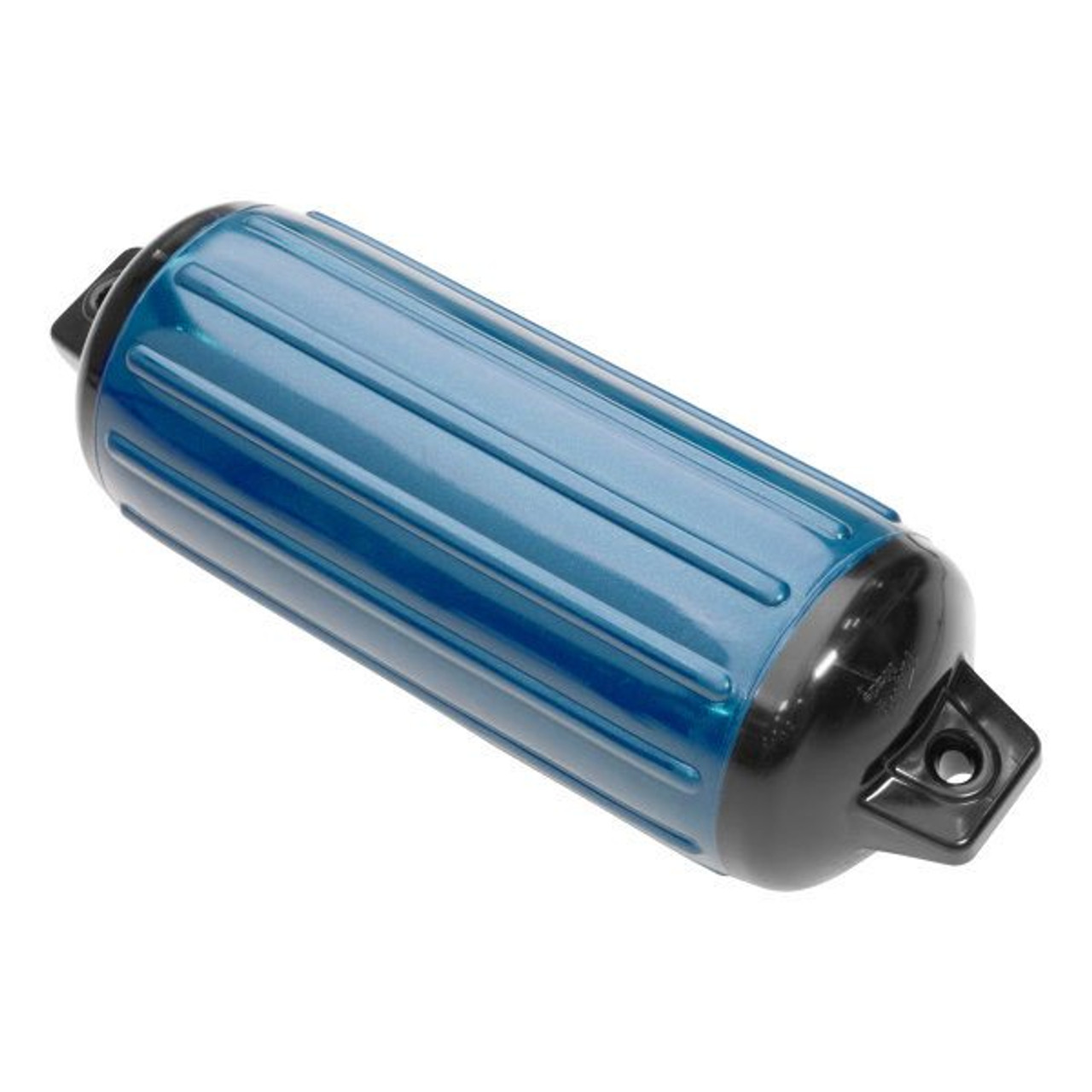

fenders

• Manufacturer: Taylor Made
• Size: 8"
• Count: 4

braided nylon fender lines

• Count: 4

wooden fender planks

• Count: 2

braided nylon fender lines

• Count: 4

docking lines

• Material: nylon
• Count: 4

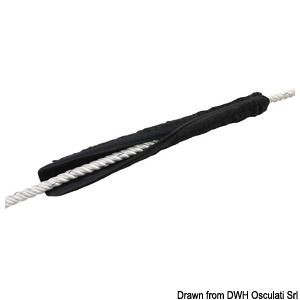

chafe guards

• Manufacturer: Osculati
• Material: wool, polyester, velcro
• Size: 14mm – 22mm rope diameter
• Count: 4

48V battery bank

• Type: LiFePo4
• Manufacturer: Epoch Batteries
• Voltage: 48VDC
• Size: 19.2kWh
• Capacity: 400Ah (4 x 100Ah)
• Count: 4

12V battery bank

• Type: LiFePo4
• Manufacturer: Epoch Batteries
• Size: 2.4kWh
• Voltage: 12VDC
• Capacity: 200Ah (2 x 100Ah)
• Count: 2

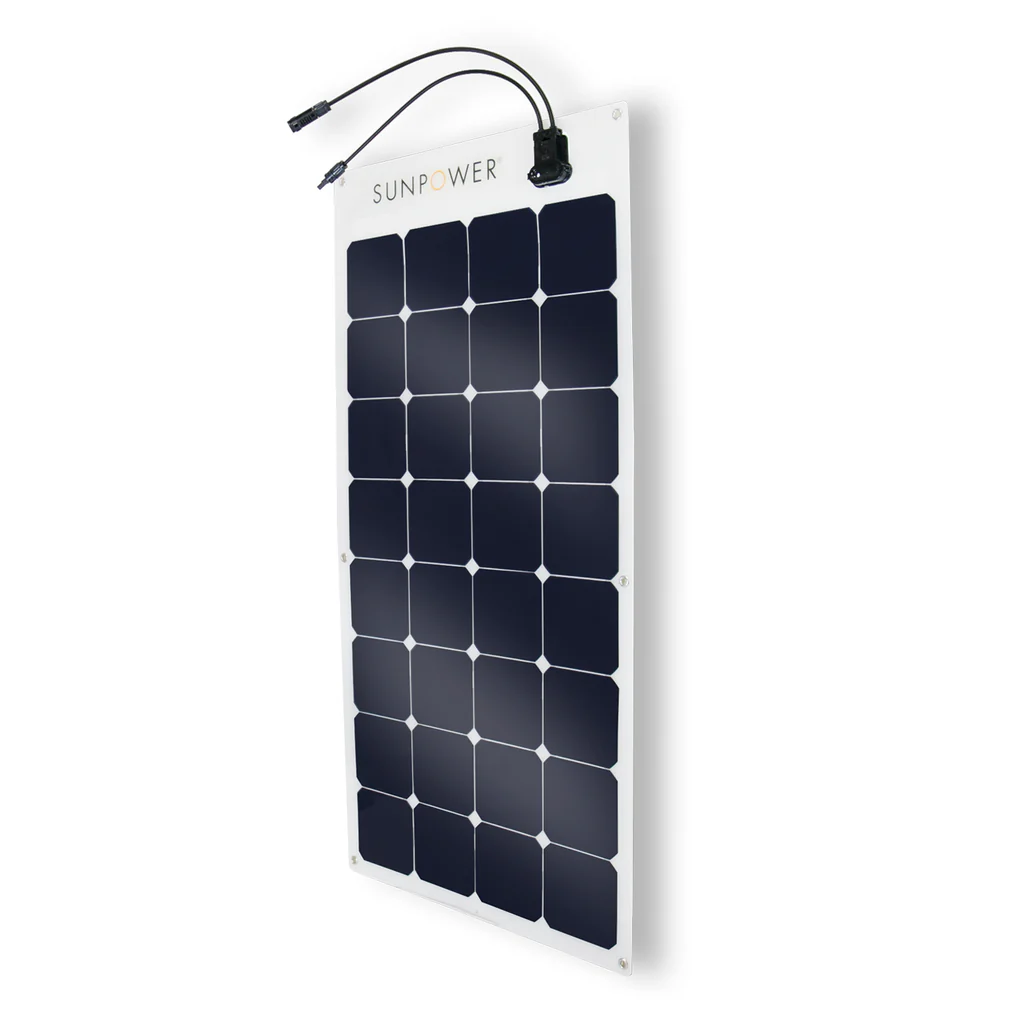

solar panel array

• Power: 1.2KW (100W x 12)
• Manufacturer: SunPower
• Model: SPR-E-Flex-100
• Count: 12
• Manufactured In: FR

MPPT / charge controller / inverter

• Voltage: 48VDC, 230VAC
• Manufacturer: Victron
• Model: Multi RS Solar 48/6000
• Power: 6KW
• Designed In: NL
• Manufactured In: MX

battery charger

• Manufacturer: ProNautic
• Model: 1230P
• Voltage: 12VDC, 120VAC, 240VAC

cast net

• Notes: 1/4" mesh × 4' high
• Weight: 4.8lb

landing net

• Material: aluminum, nylon

fishing rod

small fishing rod

fishing line

• Manufacturer: Daiwa
• Manufactured In: JP

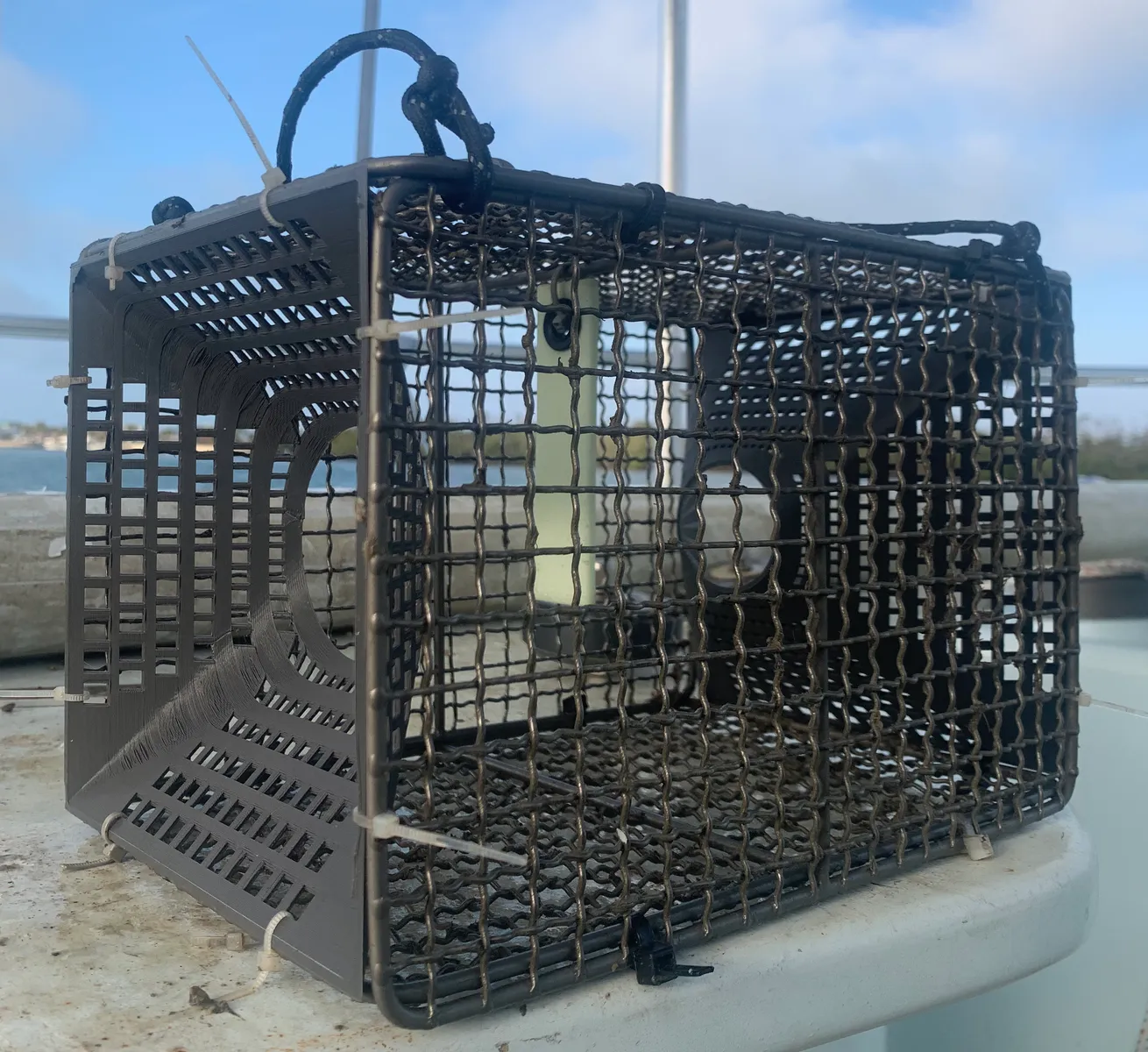

small crab trap

• Material: titanium, nylon, PLA

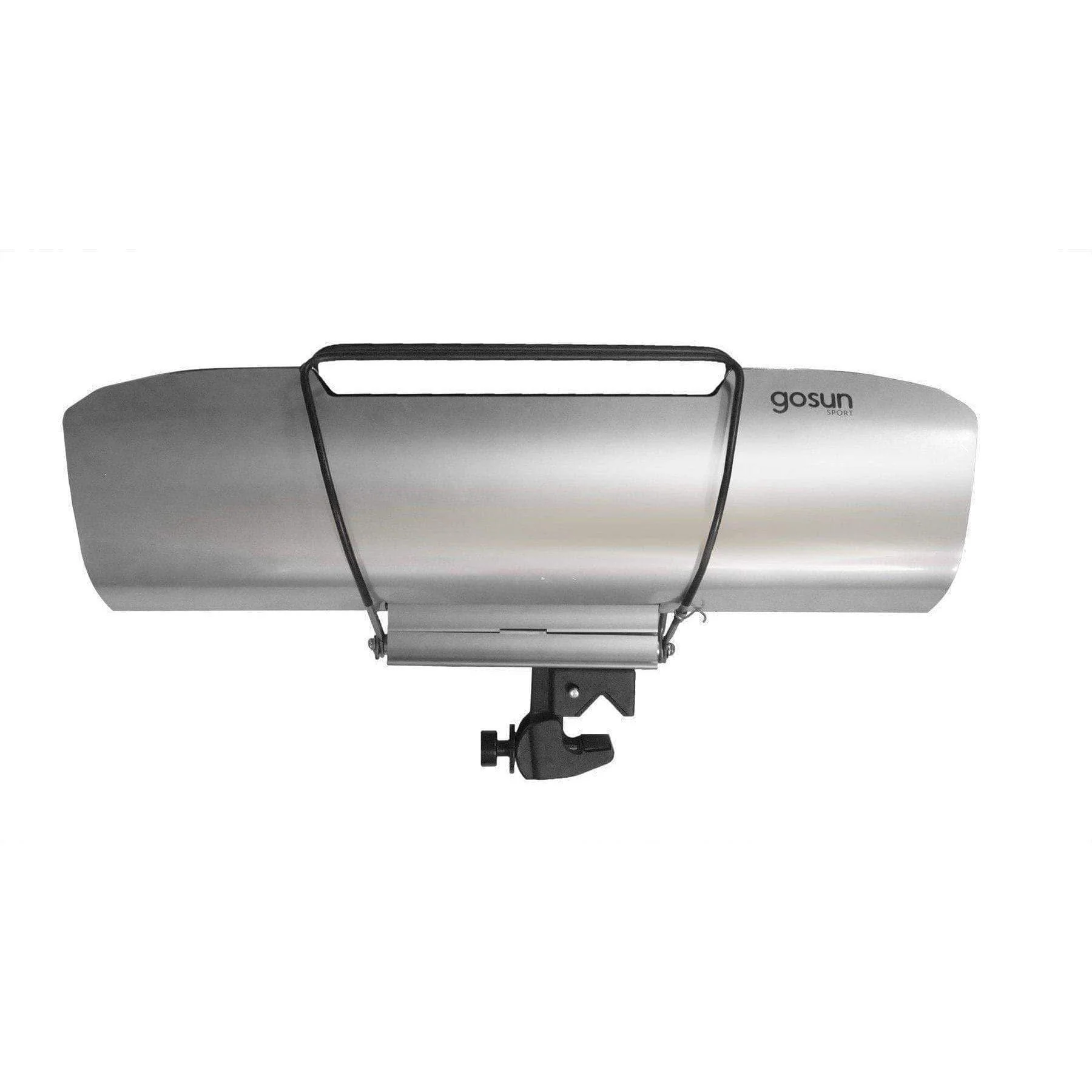

solar oven

• Manufacturer: GoSun
• Model: Sport Marine

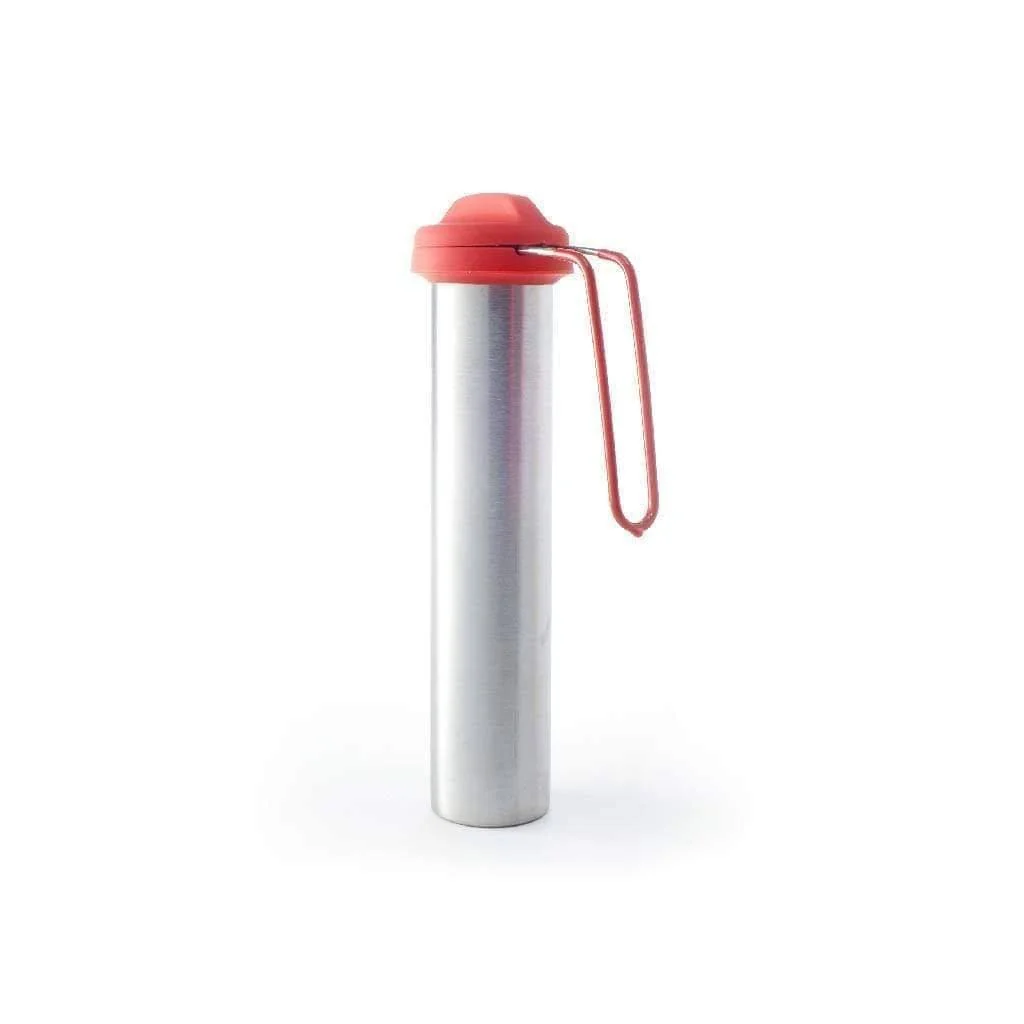

sun kettle

• Material: stainless steel, culinary-grade silicone
• Capacity: 14oz
• Notes: great for boiling water, making coffee and hot chocolate

Mini Electric Oven Toaster

• Power: 800W
• Voltage: 220VAC

Magic Bullet blender

• Voltage: 110VAC

moisture meter

• Manufacturer: Protimeter
• Model: Aquant
• Voltage: 9VDC
• Manufactured In: UK

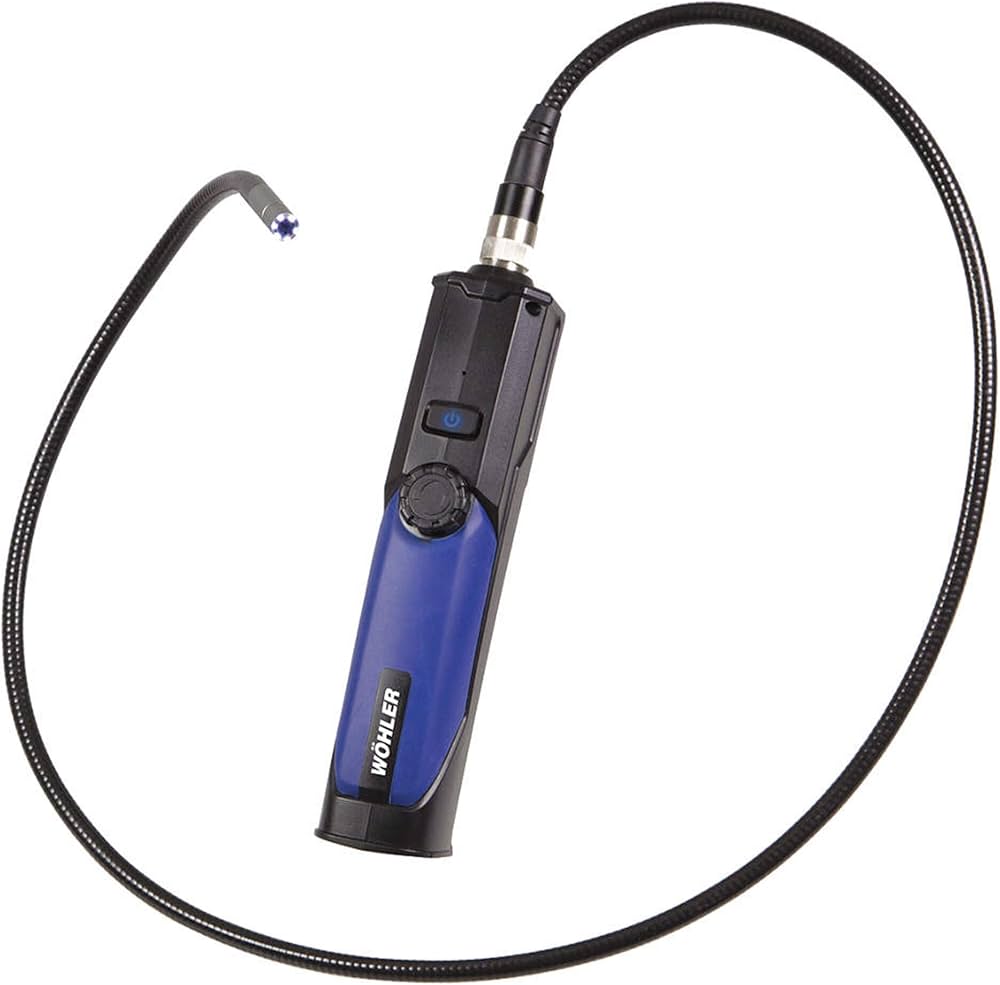

video endoscope

• Manufacturer: Wöhler
• Model: VE 200
• Manufactured In: DE

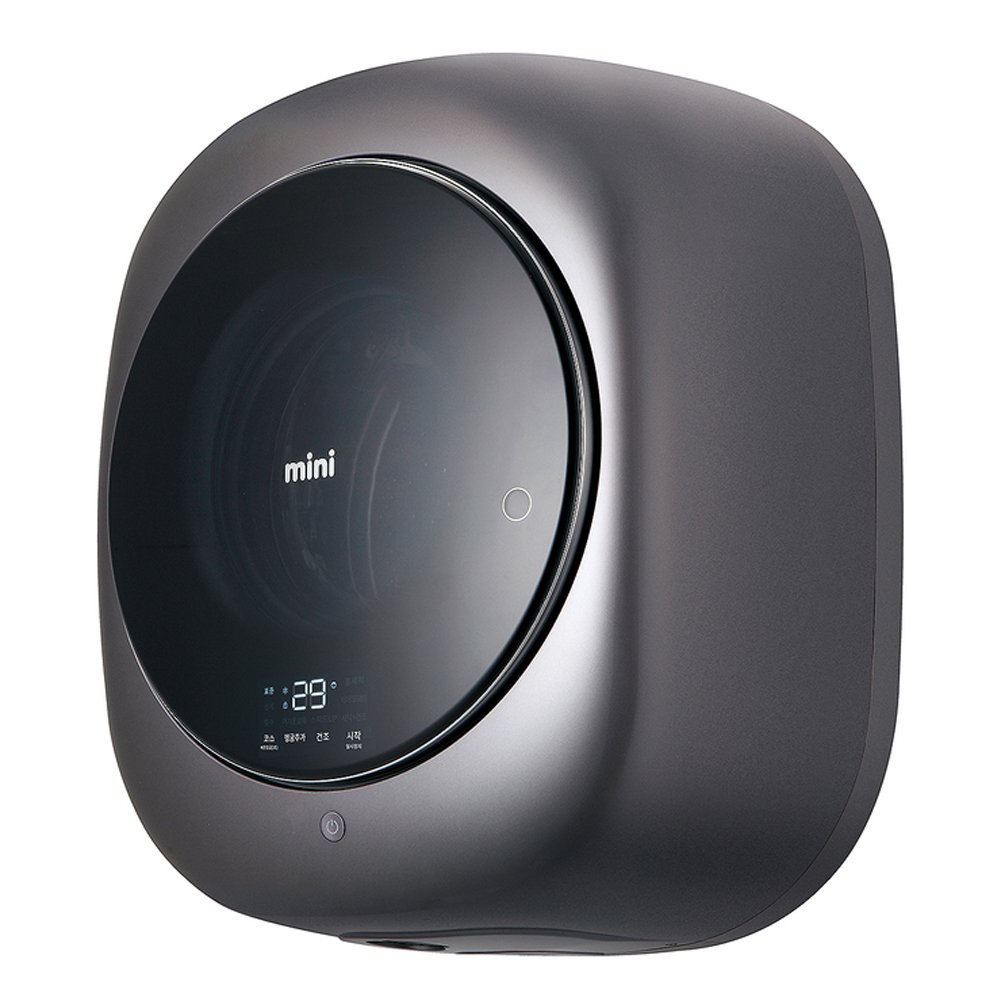

washer/dryer combo unit

• Manufacturer: Winia Daewoo
• Model: DWD-35MCRCR
• Voltage: 230VAC
• Manufactured In: KR

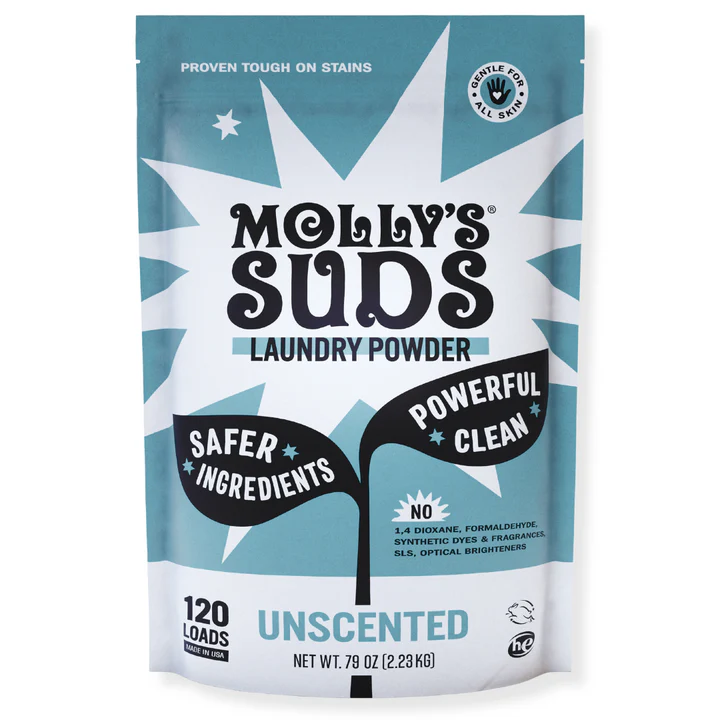

eco-friendly laundry detergent

• Manufacturer: Molly's Suds
• Manufactured In: US

stern light

• Location: stern
• Voltage: 12VDC
• Notes: LED

anchor light

• Location: top of the mast
• Voltage: 12VDC

foredeck spreader lights

• Count: 2
• Location: underneath lower spreaders
• Voltage: 12VDC
• Notes: LED

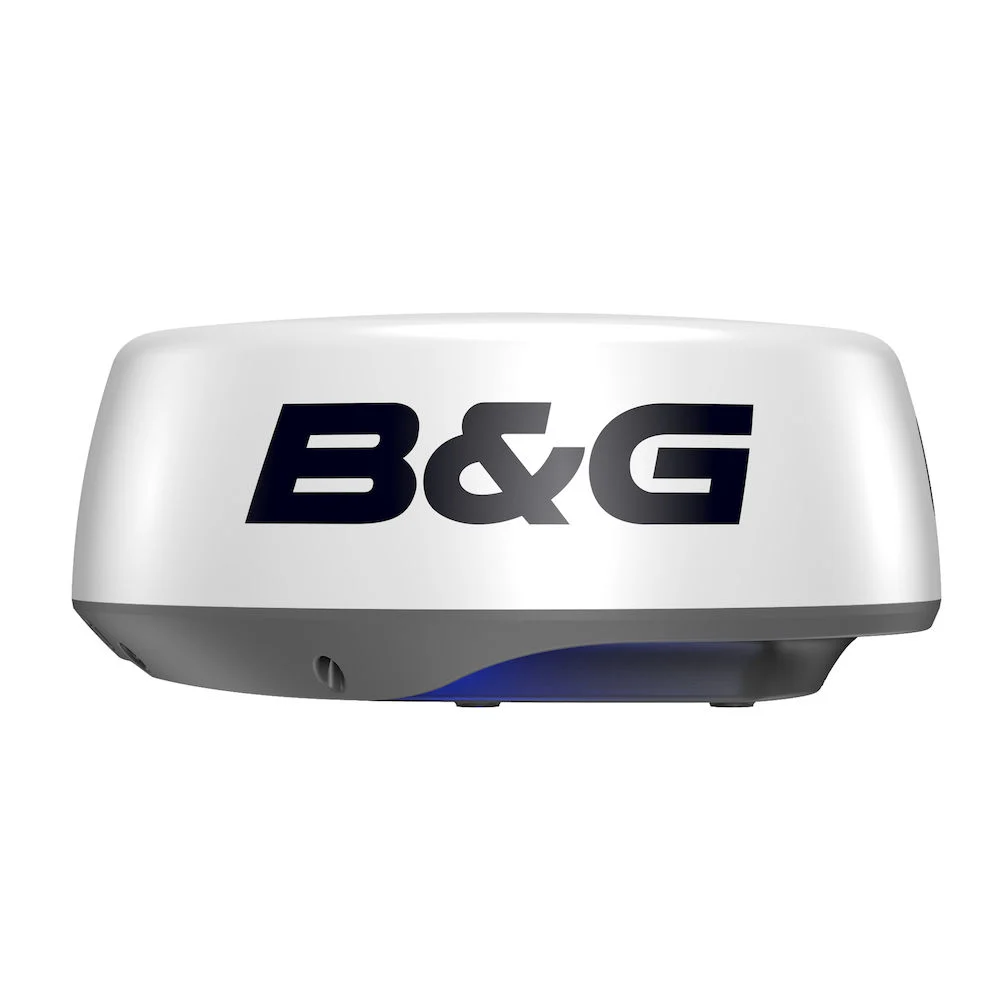

radar

• Model: Halo20+
• Manufacturer: B&G
• Voltage: 12VDC

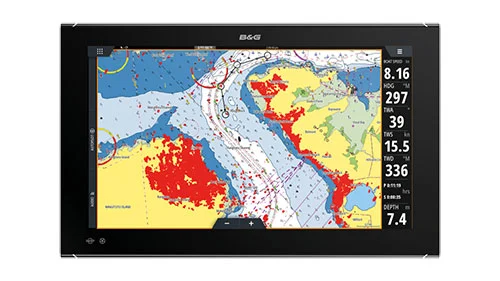

chart plotter

• Model: Zeus³S Glass Helm
• Manufacturer: B&G
• Size: 16"

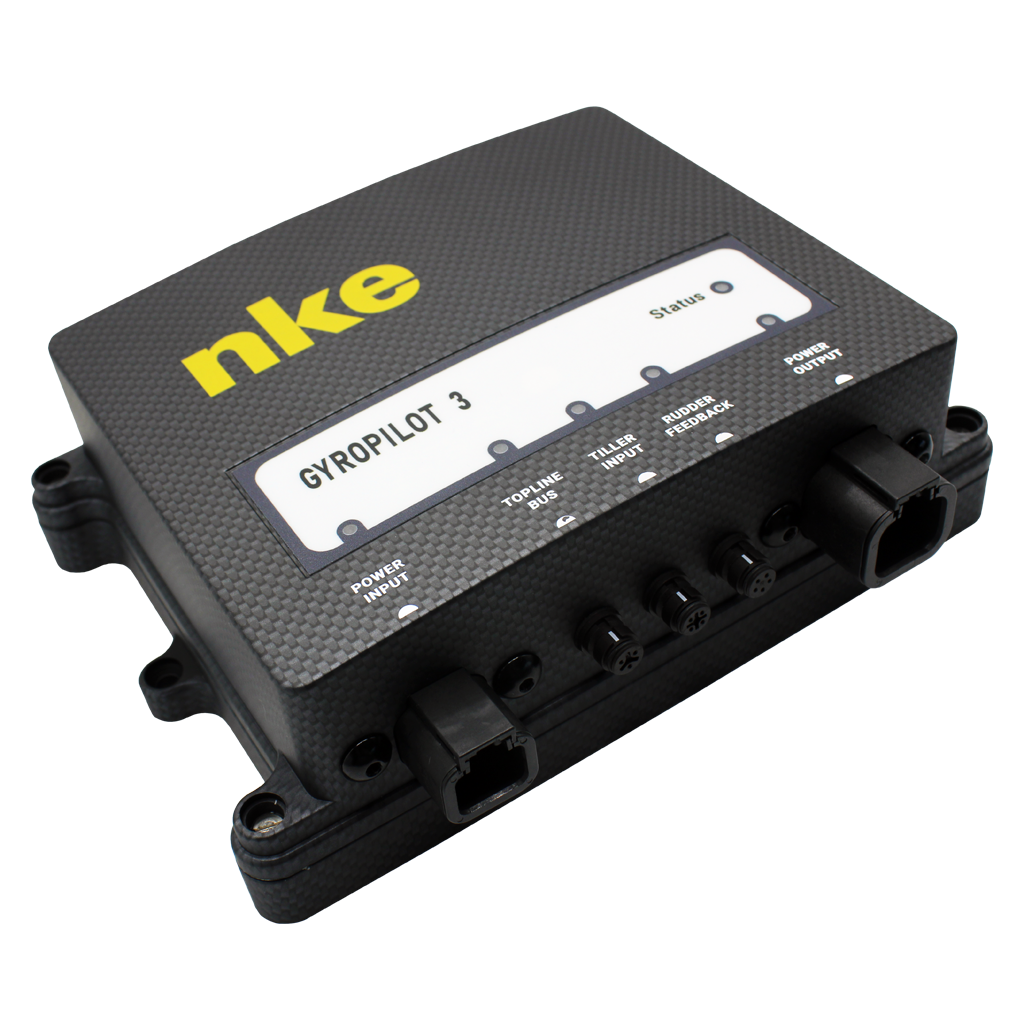

GyroPilot 3

• Manufacturer: nke
• Manufactured In: FR

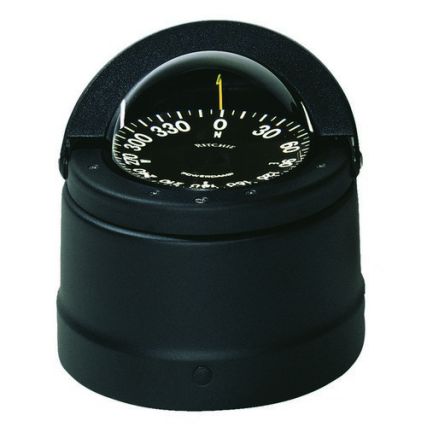

backlit binnacle-mount compasses

• Count: 2
• Location: in front of helms
• Manufacturer: Ritchie Navigation

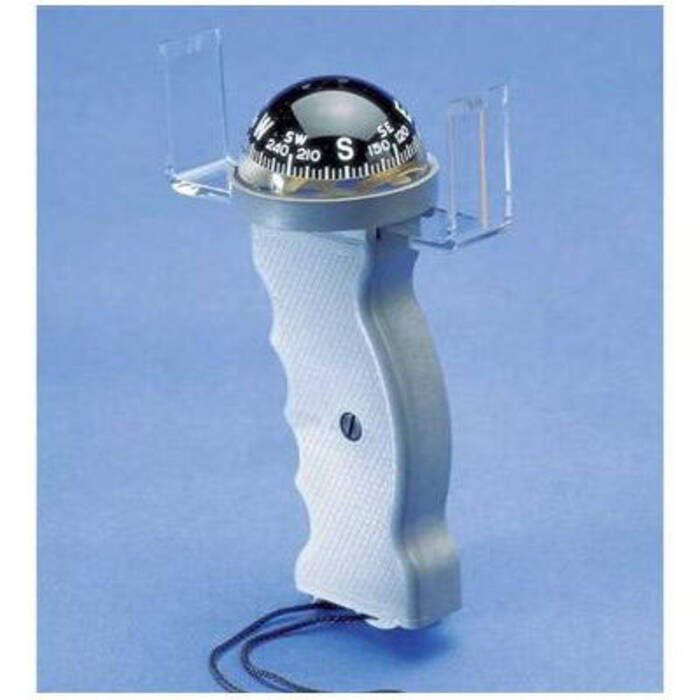

illuminated hand bearing compass

• Manufacturer: Davis Instruments

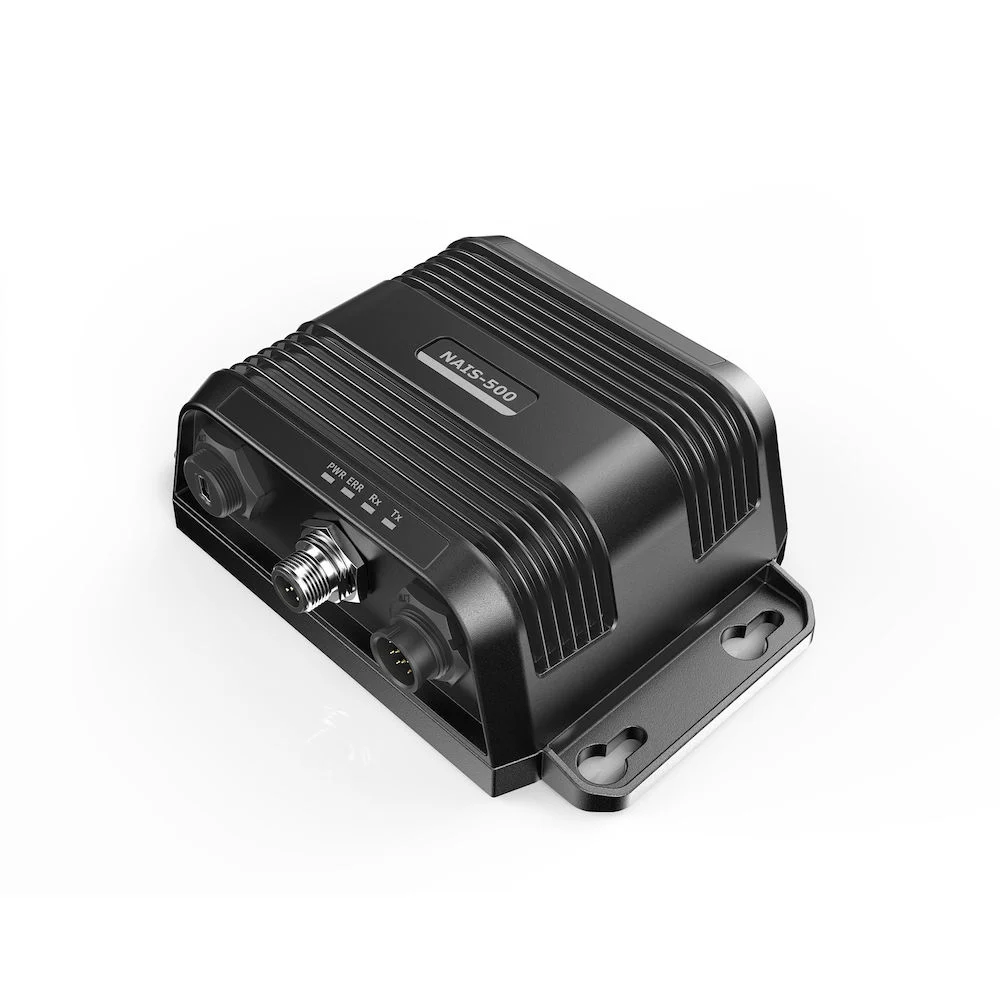

class B AIS transceiver

• Manufacturer: B&G
• Model: NAIS-500

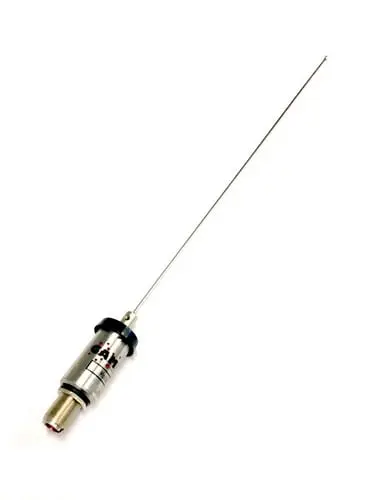

whip antenna (162MHz)

• Material: stainless steel
• Manufacturer: Gam Electronics
• Model: SS-2

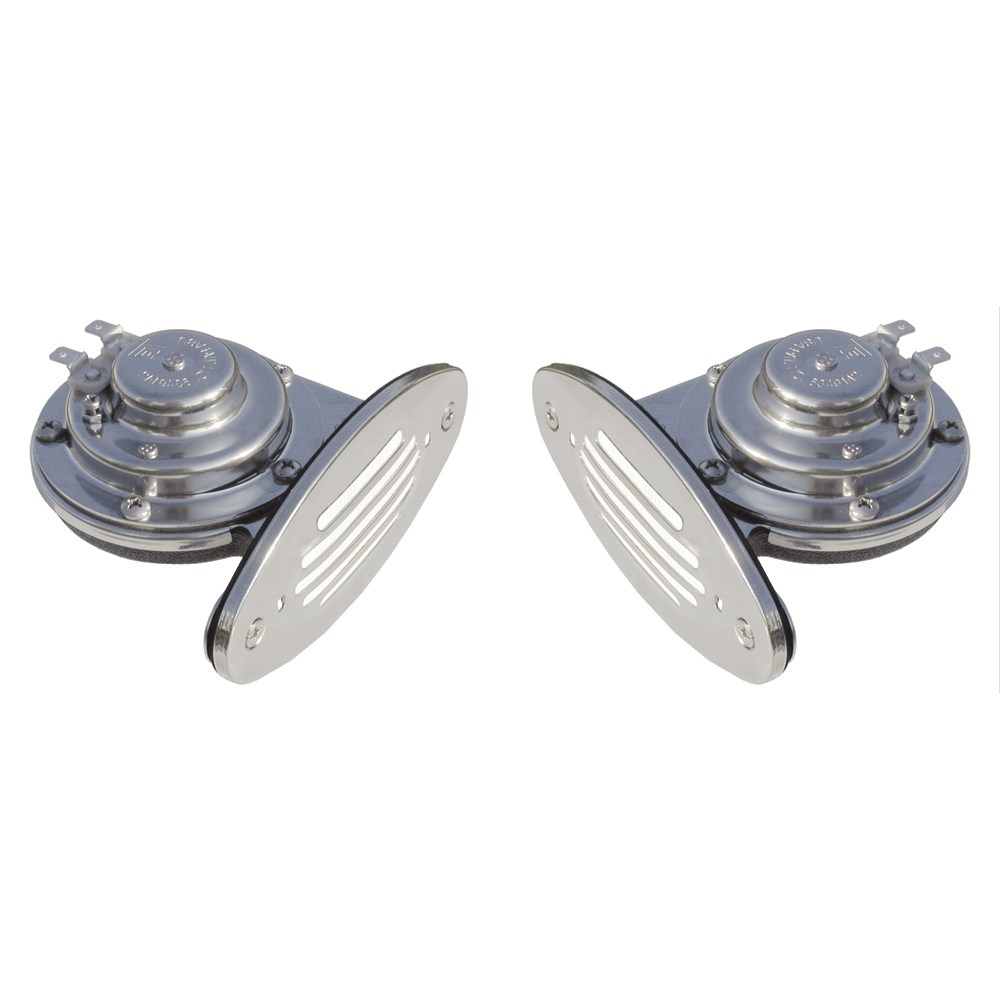

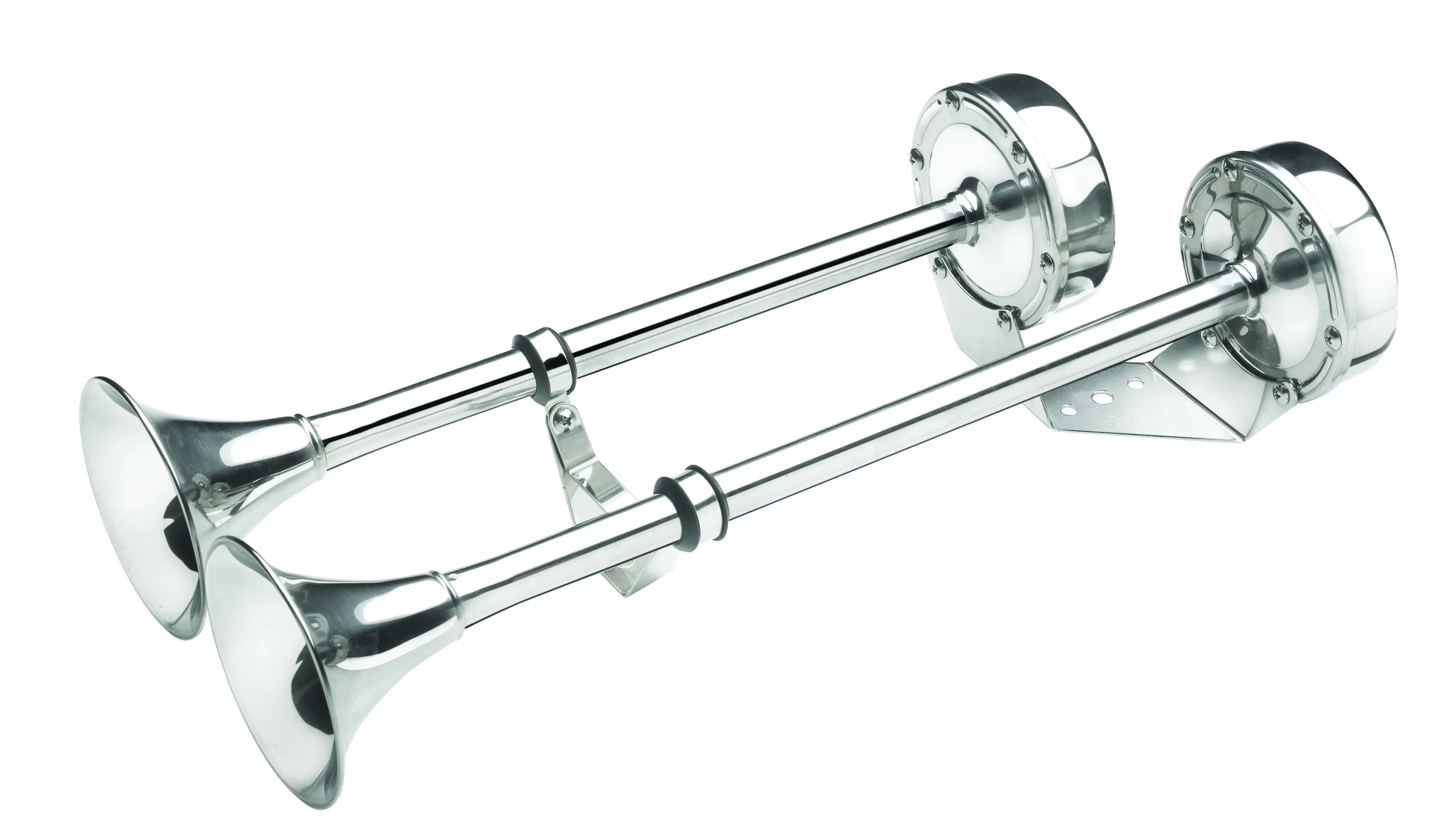

Horns

• Material: stainless steel
• Voltage: 12VDC
• Manufacturer: Schmitt & Ongaro
• Manufactured In: TW

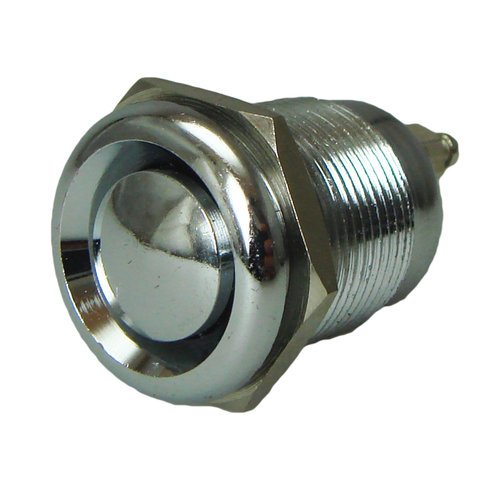

Push button

• Manufacturer: Sheridan Marine
• Material: stainless steel
• Voltage: 12VDC
• Location: cockpit (port)

Push button

• Manufacturer: Sheridan Marine
• Material: stainless steel
• Voltage: 12VDC
• Location: cockpit (starboard)

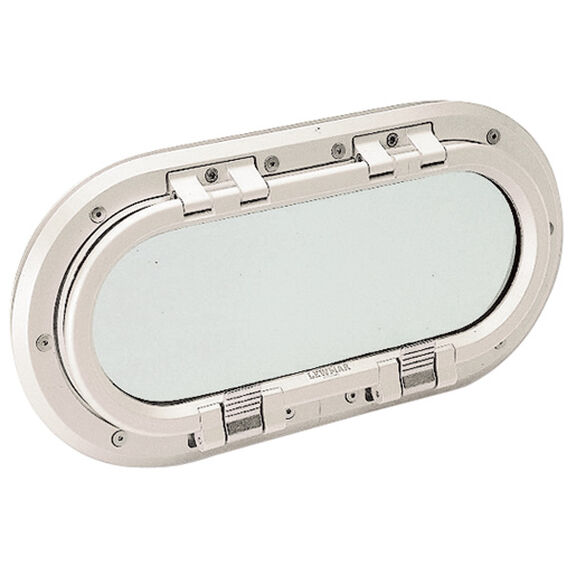

portlights

• Manufacturer: Lewmar
• Model: Atlantic Size 32
• Manufactured In: UK
• Count: 6

round hatches

• Location: cabin
• Manufacturer: Jim Black
• Model: 592-20RND-05-02-05
• Size: 20"
• Material: tempered glass, FRP
• Count: 10
• Notes: glued shut, used as windows

deck hatches

• Location: deck
• Manufacturer: Lewmar
• Model: Ocean Hatch
• Size: 30
• Manufactured In: UK
• Count: 8

escape hatches

• Location: heads
• Manufacturer: Lewmar
• Model: Ocean Hatch
• Size: 44
• Manufactured In: UK
• Count: 2

hatch

• Location: cabin
• Manufacturer: Lewmar
• Model: Ocean Hatch
• Size: 50
• Manufactured In: UK

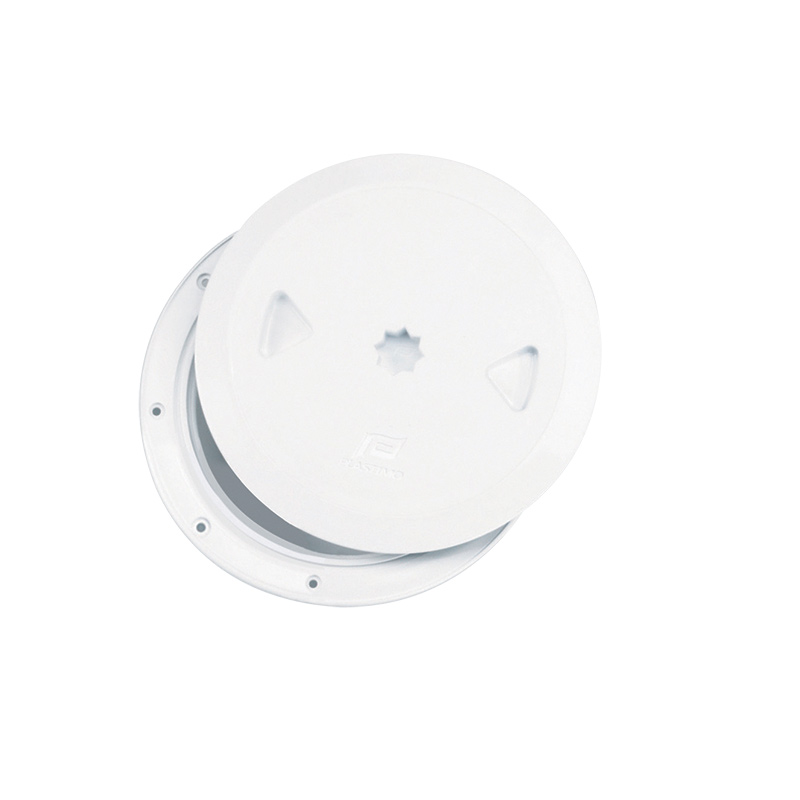

inspection hatches

• Manufacturer: Nuova Rade
• Size: 125mm
• Location: crash boxes
• Count: 2
• Manufactured In: IT

sliding transparent cabin door

• Material: aluminum, acrylic
• Manufactured In: CA

topdeck paint

• Manufacturer: AwlGrip
• Color: sky blue
• Notes: I hate this color

primer

• Manufacturer: Alexseal
• Model: Finish Primer 442
• Notes: P4420 & C4427, R5015 (12.5% by volume of P+C); target surface is sanded with 150 grit; at least two layers

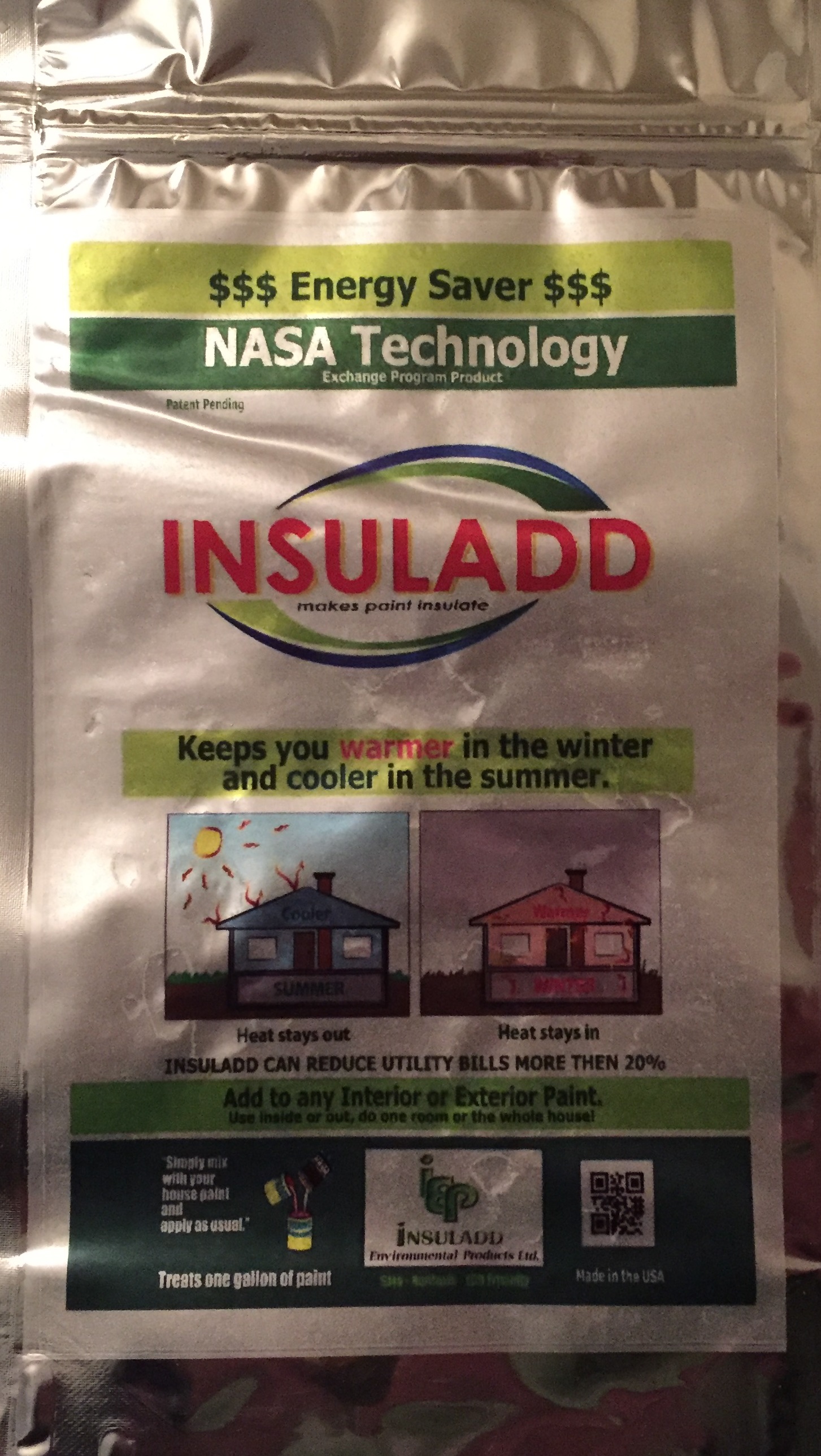

insulating ceramic paint additive

• Manufacturer: Insuladd

high build primer

• Manufacturer: Alexseal
• Model: Super Build 302
• Notes: P3002 & C3052, R3040 (10%–12.5% by volume of P+C); target surface is sanded with 80 grit

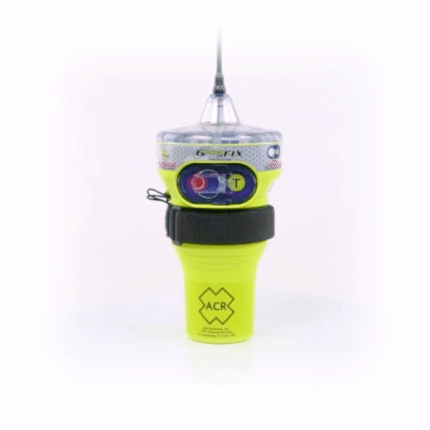

406MHz EPIRB emergency beacon

• Manufacturer: ACR
• Model: RLB-41 2831 GLOBALFIX™ V4 Cat 2
• Manufactured In: US
• Notes: manual activaion

fixed mast

• Material: aluminum
• Length: 62'
• Note: 2 diamonds (4 spreaders)

boom

• Material: aluminum
• Lengh: 18-1/3'

battcar system

• Manufacturer: Harken
• Size: 22mm

bolts

• Material: titanium
• Count: 6

nuts

• Material: titanium
• Count: 6

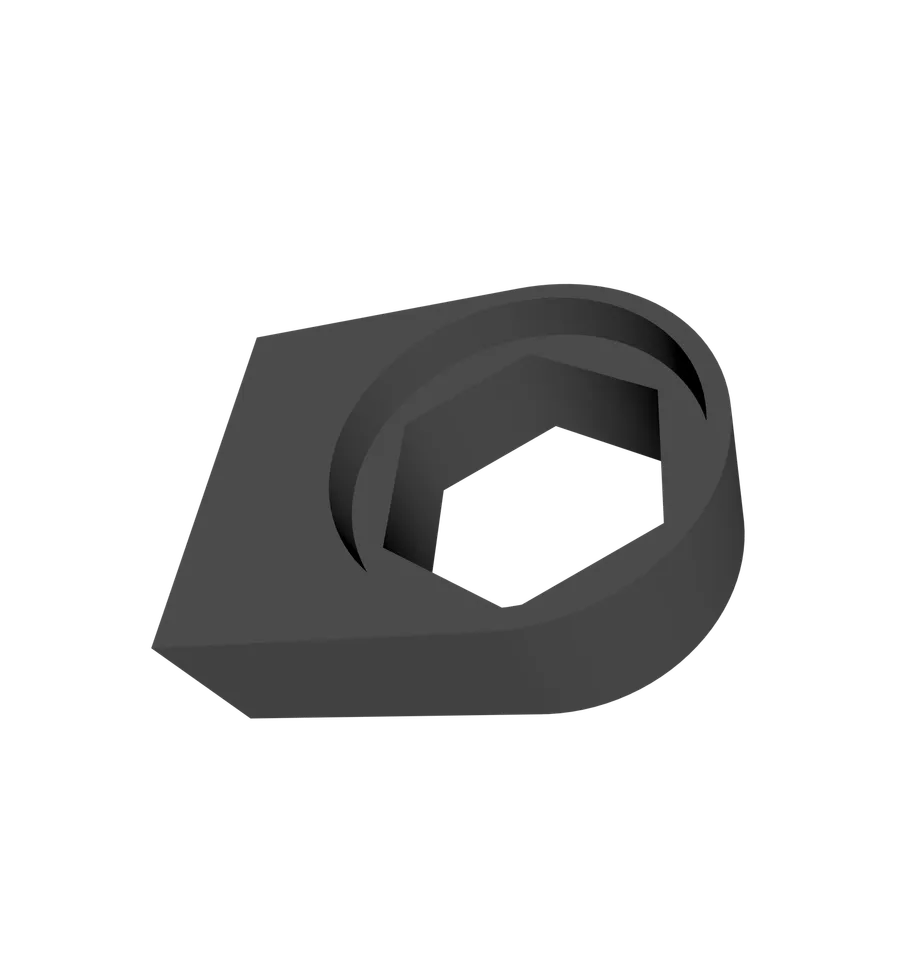

nut holder

• Material: XT-CF20
• Count: 6

forestay

• Material: stainless steel

aerodynamic seagull striker

• Manufacturer: GMT Composites
• Material: prepreg carbon fiber, G-10

a frame martingale

• Material: stainless steel

5/8" 8" turnbuckle

• Material: bronze

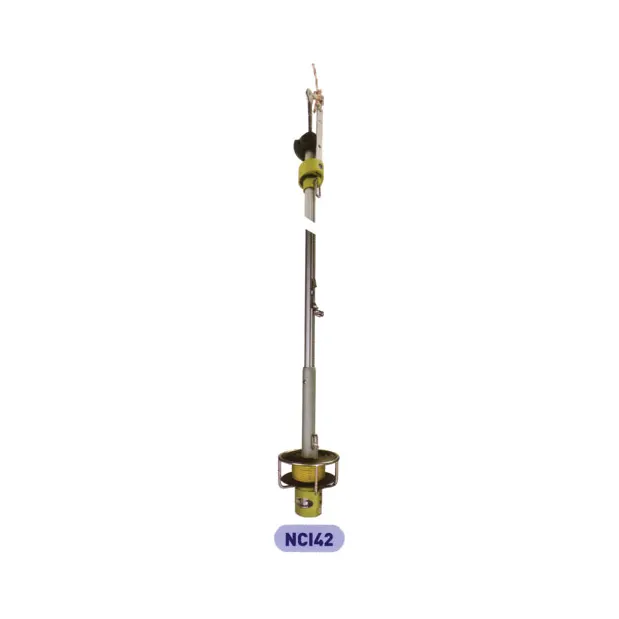

genoa furler

• Manufacturer: Profurl
• Model: NCI-42

inner forestay

inner forestay martingale

• Material: stainless steel

5/8" 8" turnbuckle

• Material: bronze

jib furler

• Manufacturer: Profurl
• Model: N31
• Notes: may be N41

sliding bolt tracks

• Count: 2
• Manufacturer: Lewmar
• Size: 2
• Location: cabin
• Manufactured In: UK

sliding drilled bolt tracks

• Count: 2
• Manufacturer: Lewmar
• Size: 2
• Location: cockpit
• Manufactured In: UK

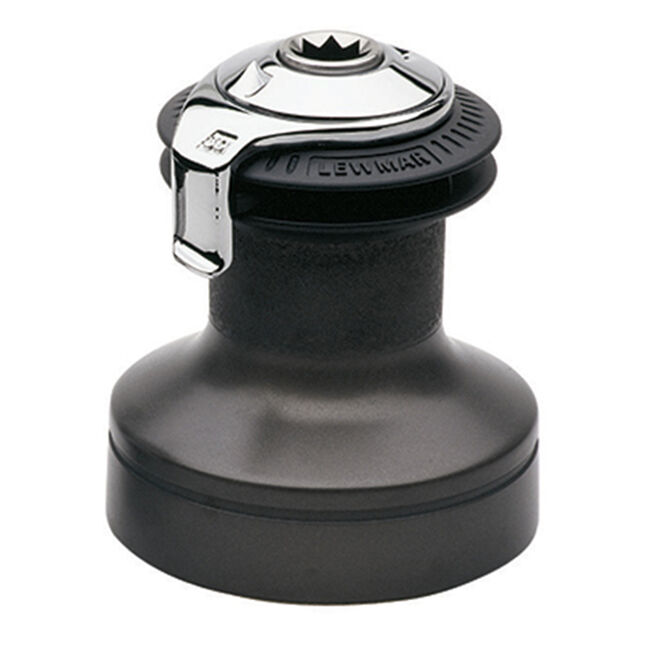

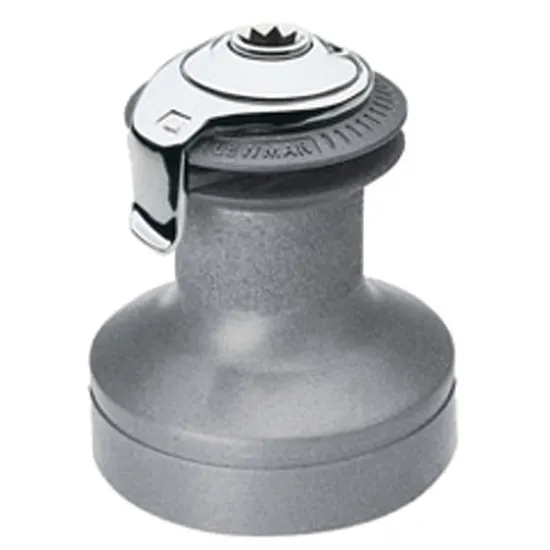

two speed self-tailing winch

• Manufacturer: Lewmar
• Model: 50
• Location: cockpit
• Count: 2
• Manufactured In: UK

two speed self-tailing winch

• Manufacturer: Lewmar
• Model: 44
• Location: cockpit
• Count: 3
• Manufactured In: UK

two speed self-tailing winch

• Manufacturer: Lewmar
• Model: 40
• Location: mast
• Count: 2
• Manufactured In: UK

winch handle

• Manufacturer: Harken
• Manufactured In: IT

winch handle

• Manufacturer: Lewmar
• Material: aluminum
• Manufactured In: UK
• Count: 2

winch handle pocket

• Manufacturer: Lewmar

genoa

• Manufacturer: North Sails

jib

• Manufacturer: North Sails

fully-batened mainsail

• Manufacturer: North Sails
• Notes: ND72V

Batten

• Material: fiberglass
• Notes: 508, 2.5, 40, 8, 2200

Batten

• Material: fiberglass
• Notes: 477, 3.0, 40, 9, 2100

Batten

• Material: fiberglass
• Notes: 441, 3.5, 40, 10, 1850

Batten

• Material: fiberglass
• Notes: 396, 4.0, 40, 12, 1700

Batten

• Material: fiberglass
• Notes: 332, 4.0, 40, 12, 1200

Batten

• Material: fiberglass
• Notes: 227, 5.0, 40, 15, 650

Batten

• Material: fiberglass
• Notes: 137, 6.0, 40, 16, 350

stanchions

• Manufacturer: Vetus
• Material: stainless steel
• Model: 30"
• Size: 75cm long, 2.5cm in diameter

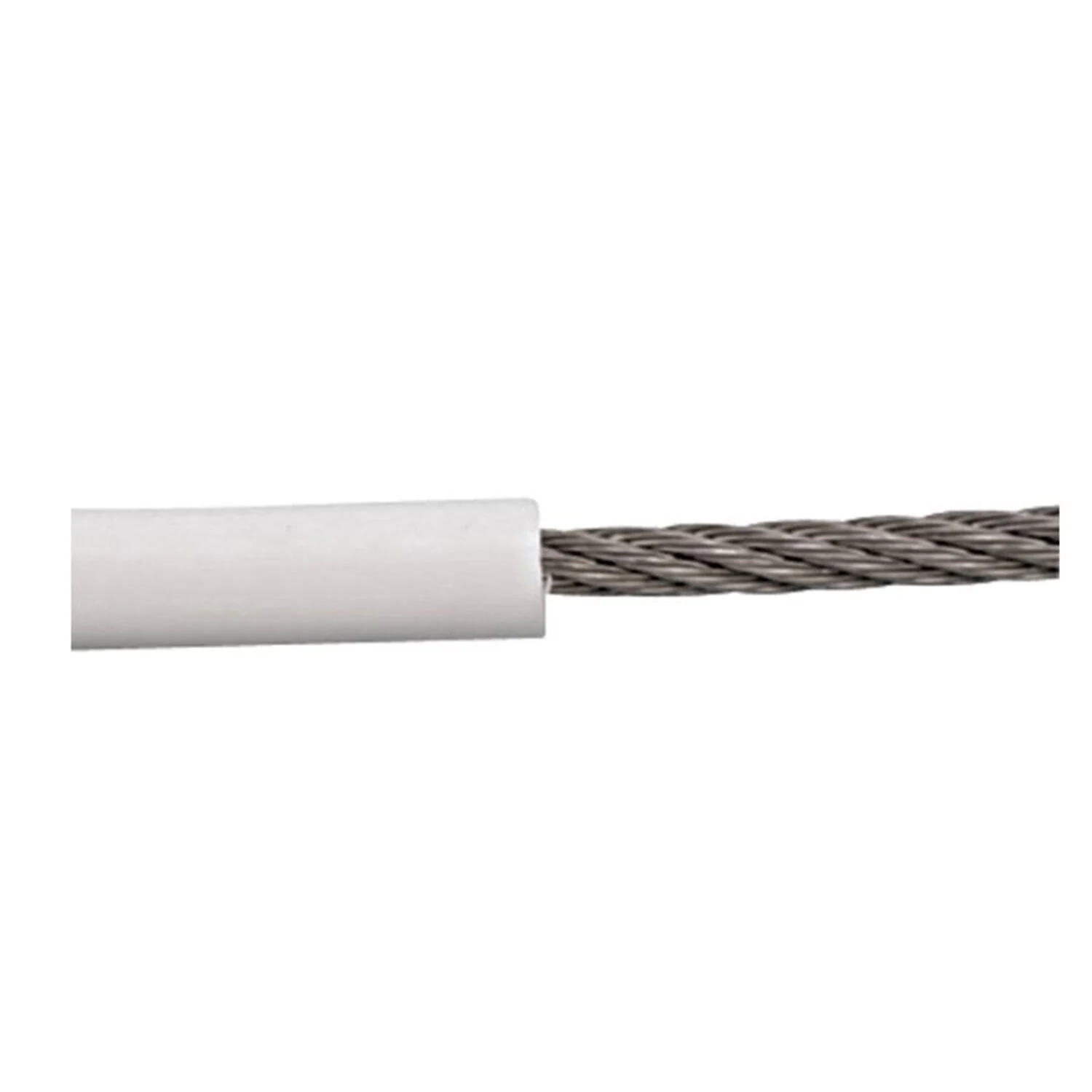

lifelines

• Length: 30'
• Material: stainless steel, vinyl
• Color: white
• Count: 4
• Manufacturer: Suncor

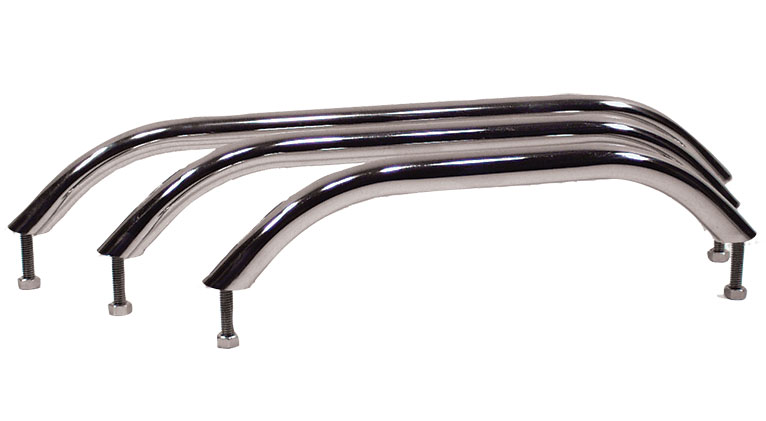

grab handles

• Material: 304 stainless steel
• Model: 18"
• Count: 4
• Location: cockpit

stereo speakers

• Manufacturer: Pioneer
• Model: TS-MR161
• Location: cockpit
• Count: 2

Bluetooth amplifier

• Voltage: 12VDC
• Location: cockpit
• Manufactured In: CN

helms

• Material: stainless steel
• Manufacturer: Edson Marine
• Size: 30"
• Count: 2

helm roller chains

• Size: ANSI 50
• Material: grade 5 titanium
• Manufacturer: RaceTech Titanium
• Manufactured In: US
• Count: 2

detachable wheel breaks

• Count: 2

cables

• Material: stainless steel
• Manufacturer: Edson Marine
• Count: 4

sheaves

• Material: bronze
• Manufacturer: Edson Marine
• Count: 6

rudders

• Material: cabon fiber, stainless steel, epoxy, closed-cell foam
• Count: 2

radial drive wheels

• Material: foam, S-glass, epoxy
• Size: 40cm in diameter, 2.25cm thick
• Count: 2

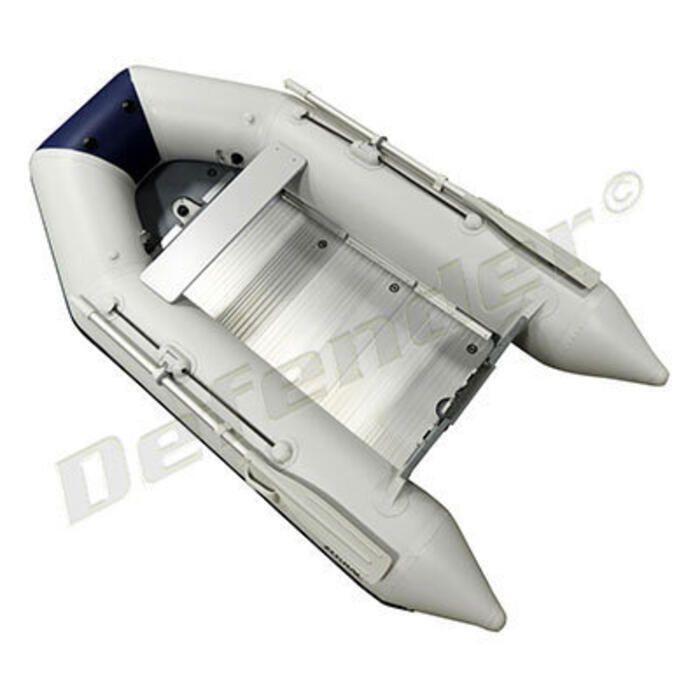

RIB dinghy with aluminum floor

• Manufacturer: Zodiac Nautic
• Model: Wave 275
• Length: 9'
• Manufactured In: FR

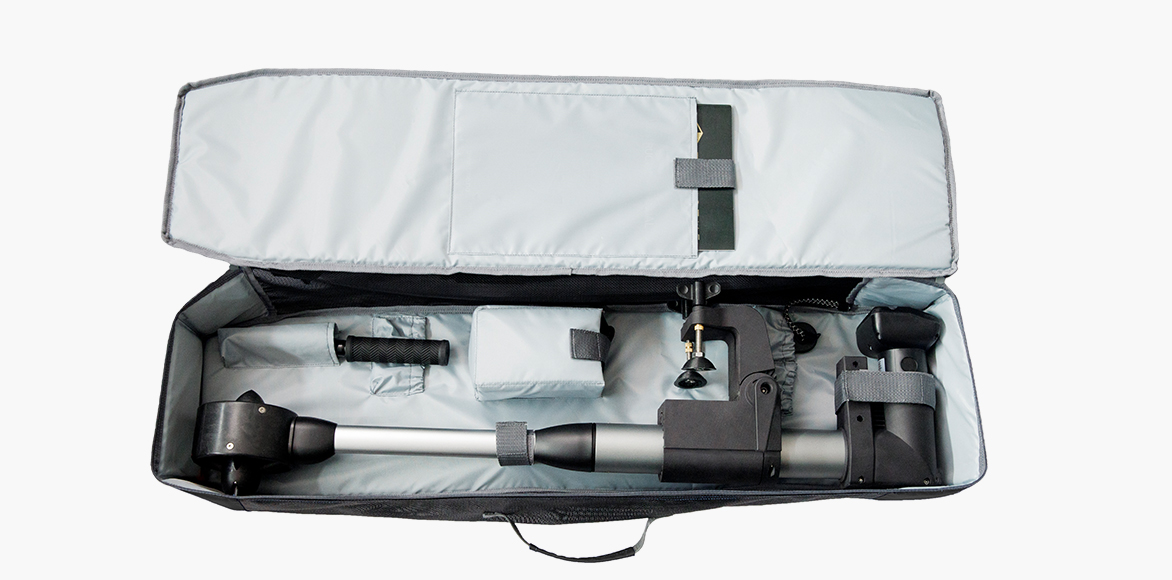

electric outboard motor

• Manufacturer: ThrustMe
• Model: Kicker
• Designed In: NO
• Manufactured In: CN

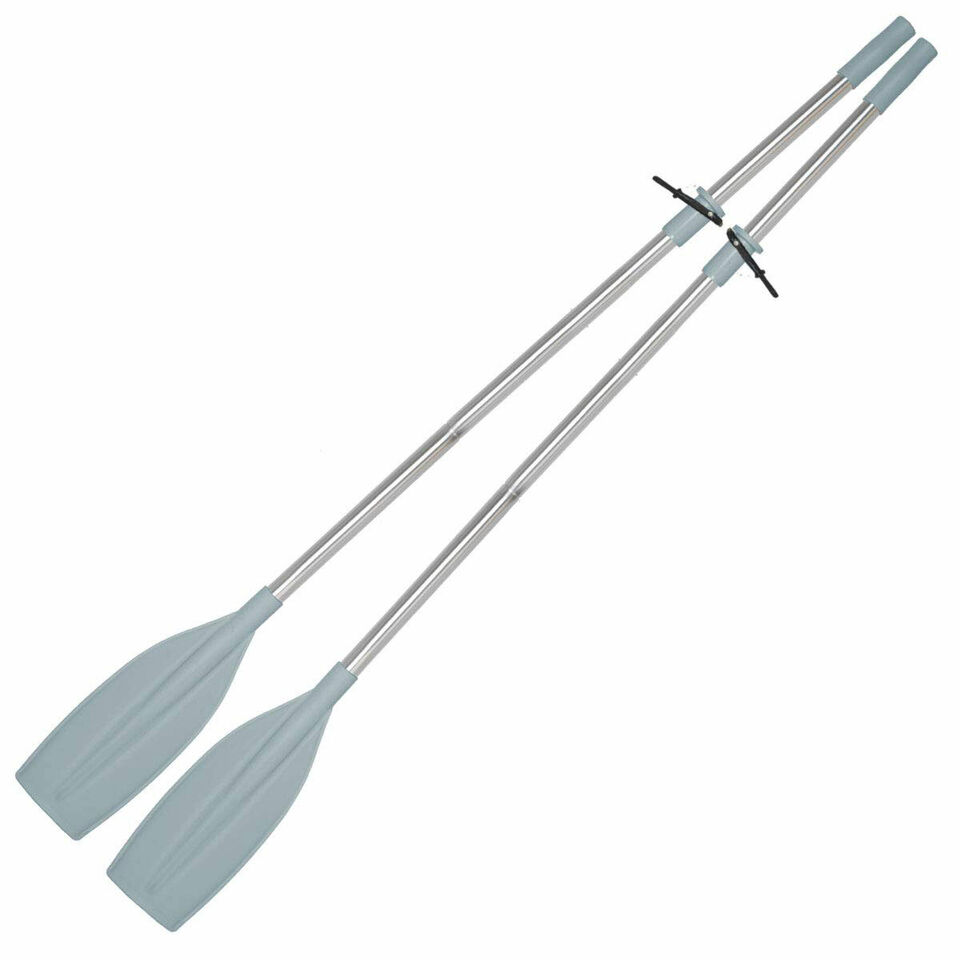

pair of oars

• Length: 78"
• Manufacturer: Oceansouth
• Material: aluminum, polypropylene

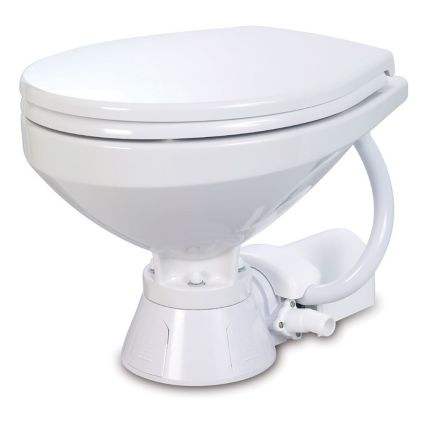

electric fresh water toilets

• Manufacturer: Jabsco
• Model: 37055
• Count: 2

macerator pumps

• Manufacturer: Jabsco
• Model: 74001-2852EU
• Voltage: 12VDC
• Count: 2

solenoid valves

• Manufacturer: Jabsco
• Model: 37030-2012
• Voltage: 12VDC
• Count: 2

holding tanks

• Material: polyethylene
• Capacity: 13 gal.
• Size: 24" × 10" × 14"
• Manufacturer: Todd
• Count: 2

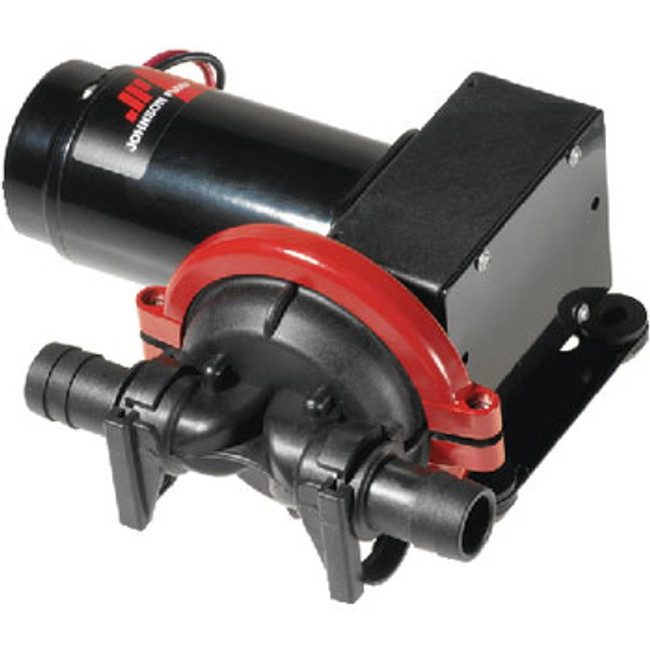

waste pump

• Manufacturer: Johnson Pump
• Model: Viking Power 16
• Voltage: 12VDC
• Location: port bow

Drinking Water Faucet

• Manufacturer: NU Aqua
• Manterial: stainless steel
• Location: galley

Alkaline 5 Stage Remineralization Filter

• Manufacturer: NU Aqua
• Location: galley

fresh water tank

• Material: stainless steel
• Volume: 30 gal
• Location: port midship

pump

• Manufacturer: Jabsco
• Flow Rate: 2.9GPM
• Voltage: 12VDC
• Manufactured In: CN

pressure accumulator

• Manufacturer: SHURflo

fresh water lines

• Material: PVC
• Diameter: 15mm

fresh water tank

• Material: stainless steel
• Volume: 30 gal
• Location: starboard midship

fresh water pump

• Voltage: 12VDC

fresh water lines

• Material: PVC
• Diameter: 15mm

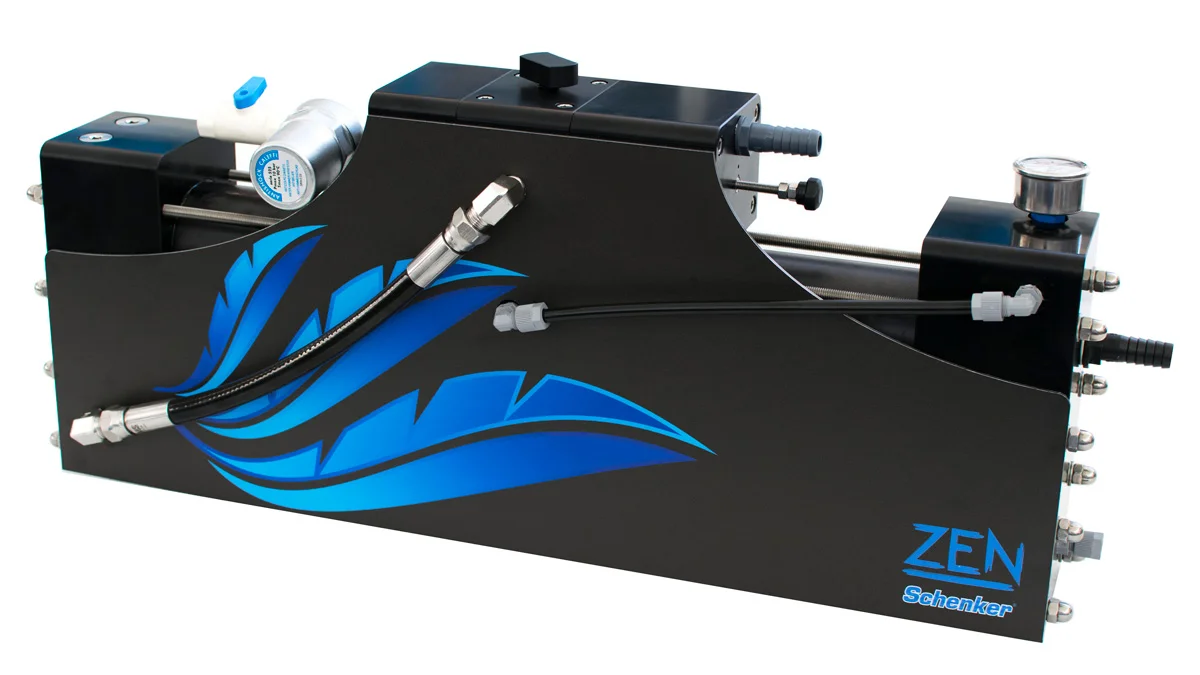

water maker

• Manufacturer: Schenker
• Model: Zen 30
• Voltage: 12VDC
• Location: cockpit (starboard side)

emergency manual water maker

• Manufacturer: QuenchSea
• Model: 1.0

water quality measurement device

• Manufacturer: Apera
• Model: EC60

water jerry cans

• Manufacturer: Hopkins Towing Solutions
• Capacity: 6.5 gal.
• Count: 4

RV-style shower

• Location: port head

port shower pump

• Manufacturer: Johnson Pump
• Model: Low Boy 750 GPH
• Voltage: 12VDC
• Location: port head

port shower pump sensor switch

• Manufacturer: Johnson Pump
• Model: Ultima
• Voltage: 12VDC
• Location: port head

RV-style shower

• Location: starboard head

starboard shower pump

• Manufacturer: Johnson Pump
• Model: Low Boy 750 GPH
• Voltage: 12VDC
• Location: starboard head

starboard shower pump sensor switch

• Manufacturer: Johnson
• Model: Ultima
• Voltage: 12VDC
• Location: starboard head

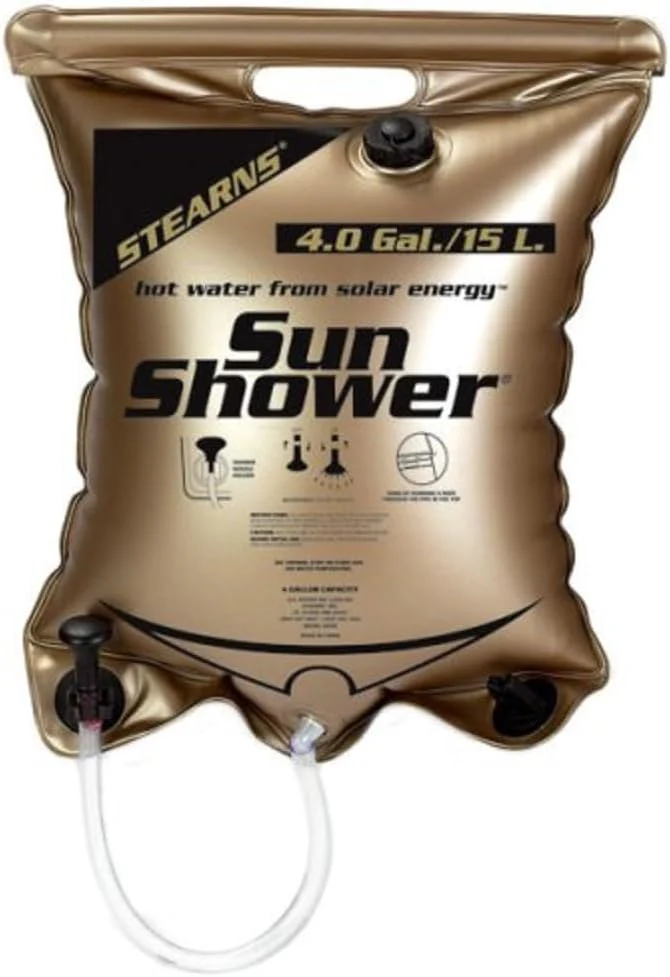

sun shower

• Capacity: 4 gal.
• Count: 2

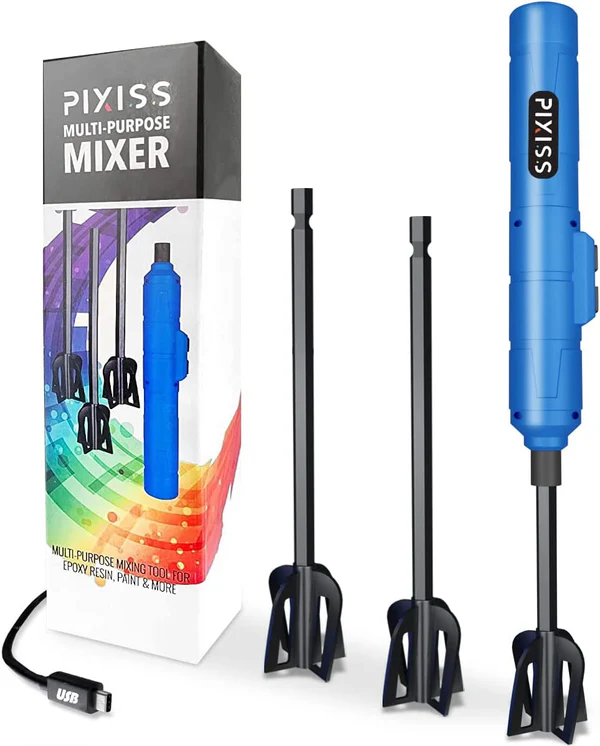

electric resin mixer

• Notes: mostly used for mixing epoxy

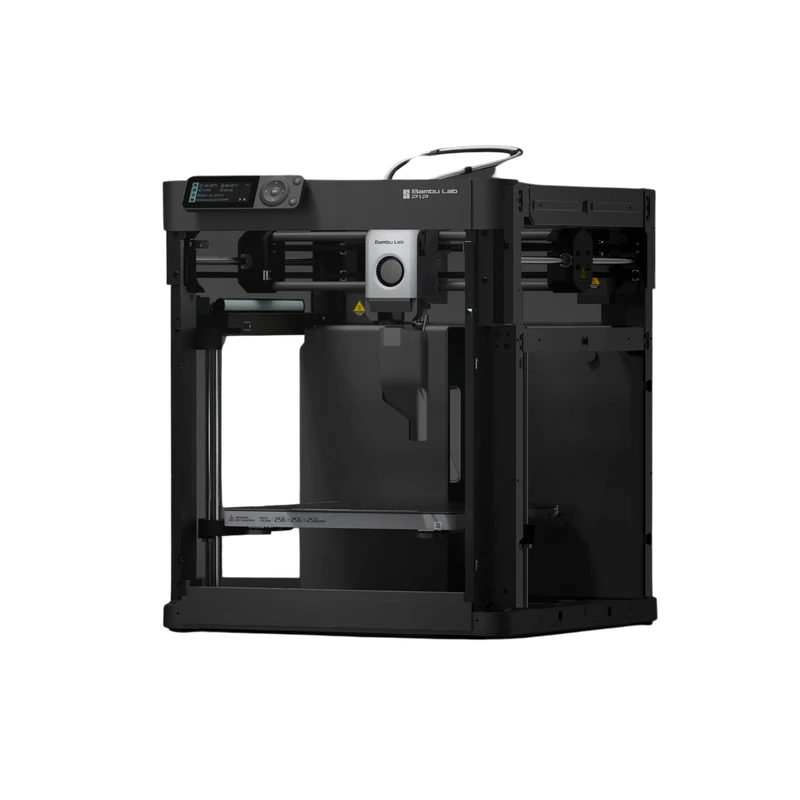

FDM 3D printer

• Manufacturer: Bambu Lab
• Model: P1P
• Manufactured In: CN

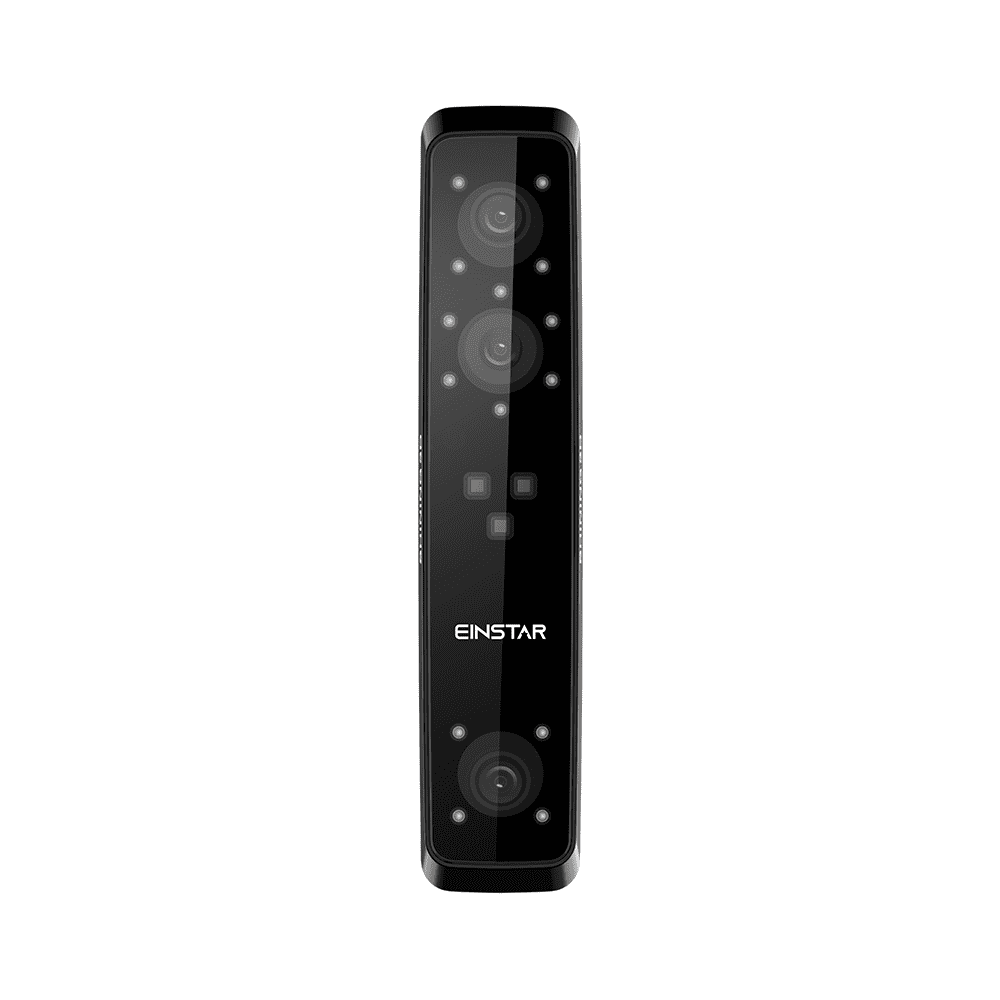

handheld 3D scanner

• Manufacturer: Shining
• Model: Einstar
• Manufactured In: CN

CNC machine

• Manufactured In: CA

laser beam attachment

• Power: 7W

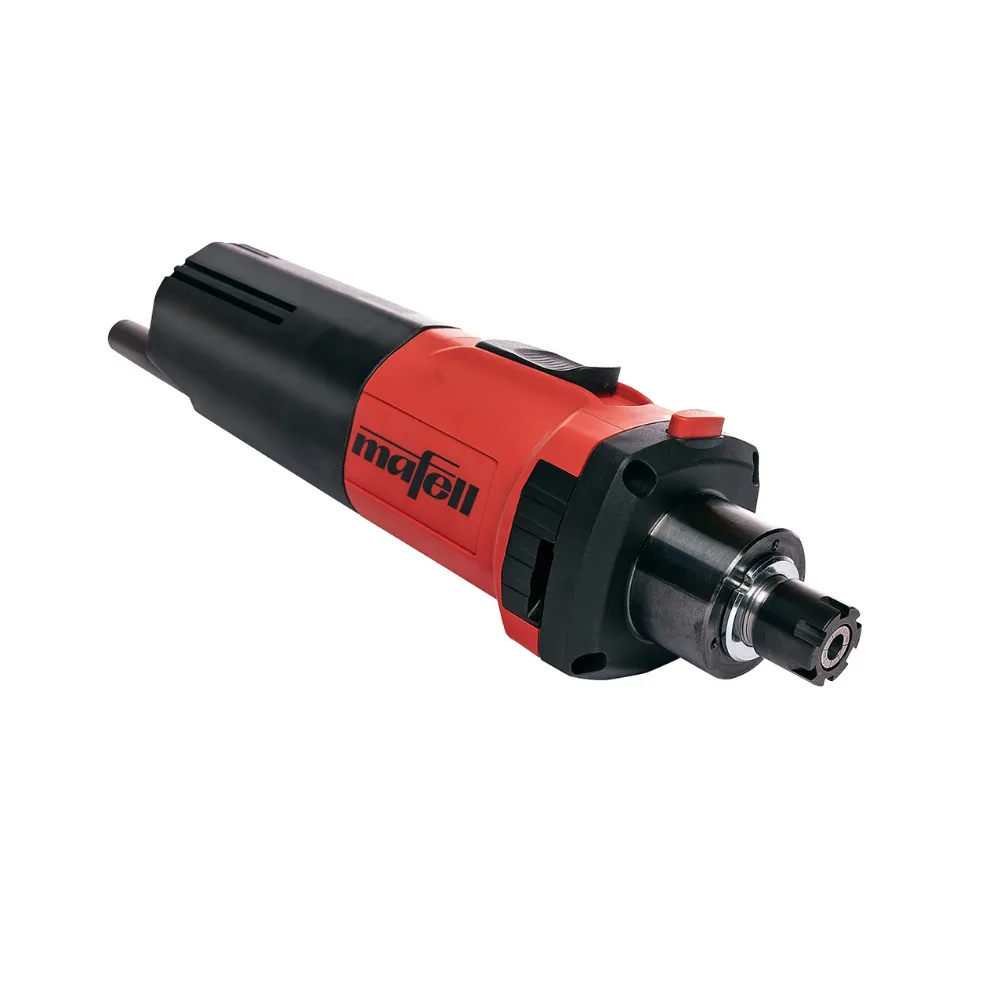

air-cooled milling motor

• Manufacturer: Mafell
• Model: FM1000
• Power: 1000W
• Manufactured In: DE

end mill

• Model: HSS1611-M

end mill

• Model: 48442-K

laser range meters

• Manufacturer: Bosch
• Model: GLM 20
• Count: 2

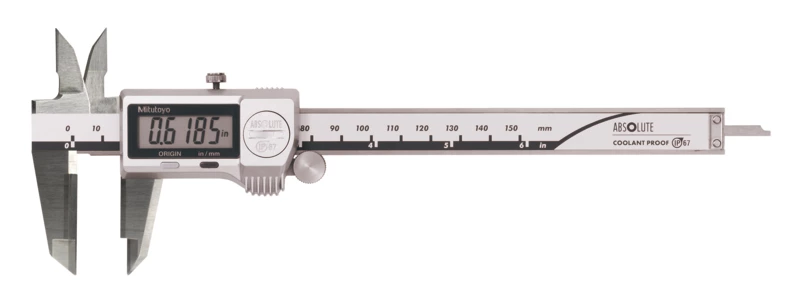

waterproof calipers

• Manufacturer: Mitutoyo
• Model: 500-738-20calipers.webp
• Manufactured In: JP

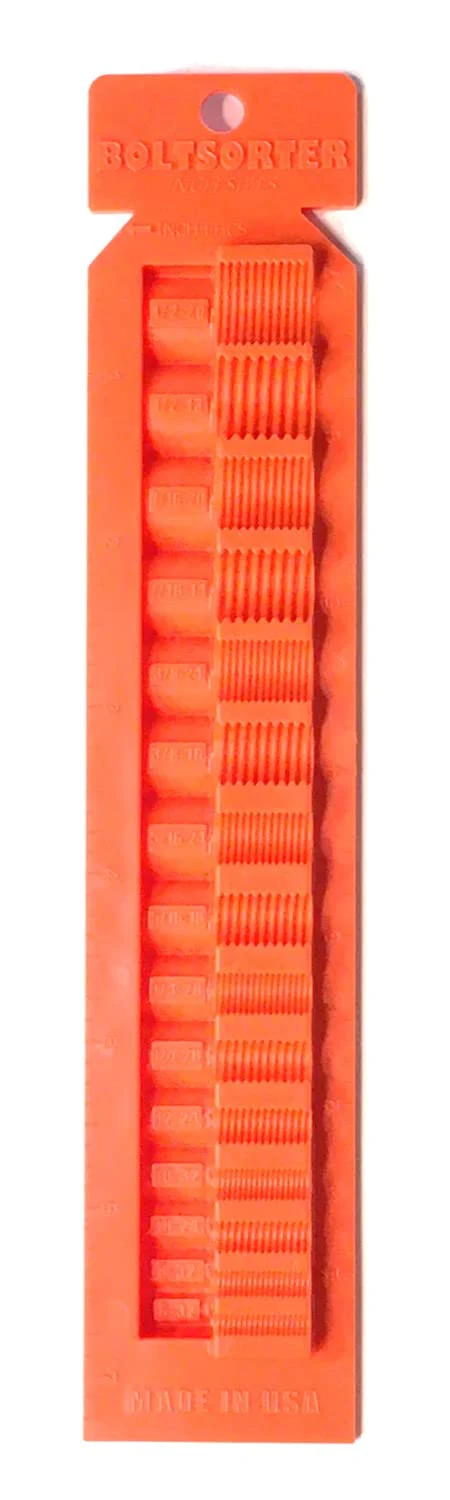

boltsorter

• Manufacturer: Boltsorter
• Manufactured In: US

unsinkable corrosion-resistant wrench

• Model: 6 inch
• Material: titanium
• Manufacturer: Maratac
• Manufactured In: US
• Notes: made unsinkable using foam camera strap by Nordic Flash

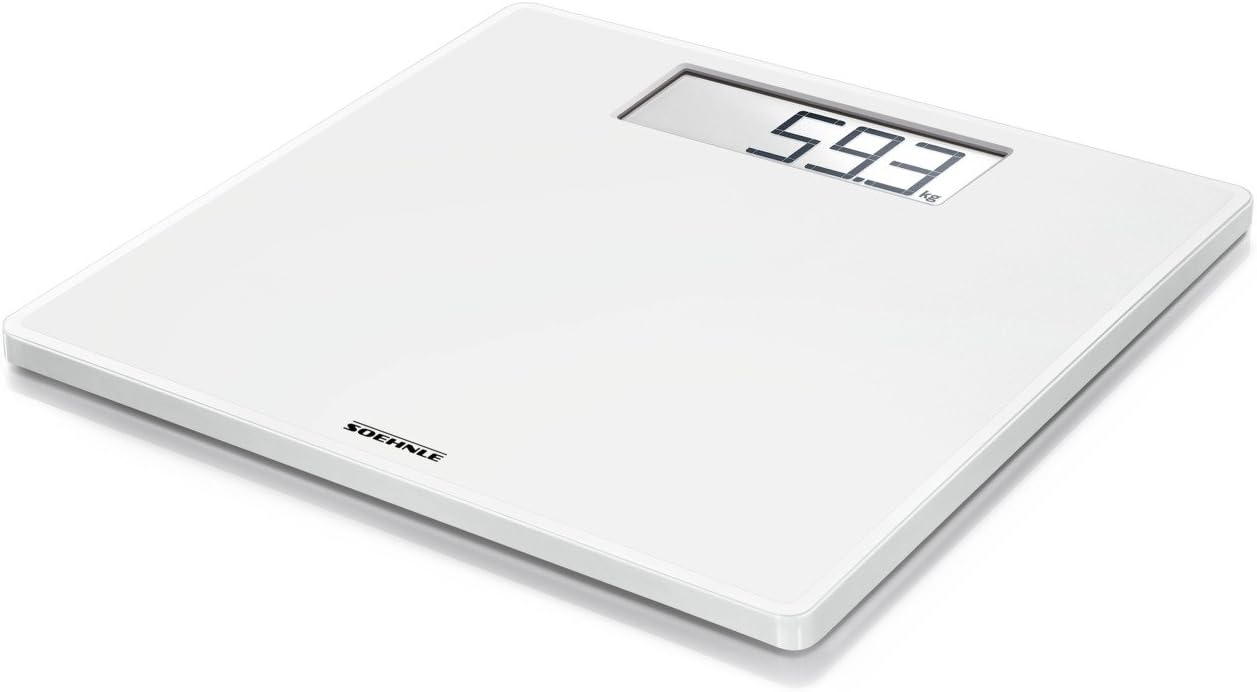

bathroom scales

• Weight Limit: 180kg
• Precision: 100g
• Manufacturer: Soehnle
• Model: Style Sense Safe 100
• Manufactured In: DE

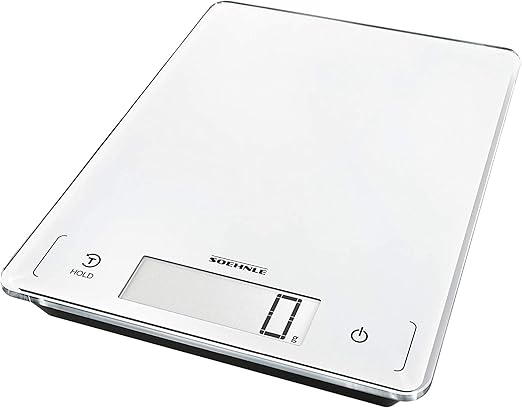

kitchen scales

• Weight Limit: 20kg
• Precision: 1g
• Manufacturer: Soehnle
• Model: Page Profi 300
• Manufactured In: DE

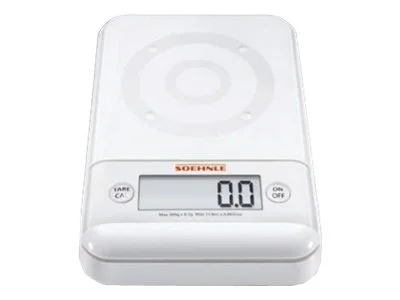

precision scales

• Weight Limit: 500g
• Precision: 0.1g
• Manufacturer: Soehnle
• Model: Ultra 2.0
• Manufactured In: DE
• Note: used for mixing epoxy by weight
